Sandvik Coromant PRGNR 4040S 25 T-Max™ P shank tool for turning
R 3 259,10
inc. vat
In stock
SKU
5738286
T-Max® P shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P shank tool for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 250mm |
| TQ - Torque | 17Nm |
| WT - Weight Of Item | 2.913kg |
| OAL - Overall Length | 250mm |
| OHX - Maximum Overhang | 41.9mm |
| LSC - Clamping Length | 208.1mm |
| RMPX - Maximum Ramping Angle | 40deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 50mm |
| HF - Functional Height | 40mm |
| GAMO - Orthogonal Rake Angle | -6deg |
| LAMS - Inclination Angle | -6deg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 25.4mm |
| RE - Corner Radius | 12.7mm |
| Insert Thickness | 9.525mm |
| H - Shank Height | 40mm |
| B - Shank Width | 40mm |
| ORDCODE | PRGNR 4040S 25 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A4040_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-16 17:02:00.000 |
| MTP - Clamping Type Code | P |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RN2509_1 |
| Hand | R |

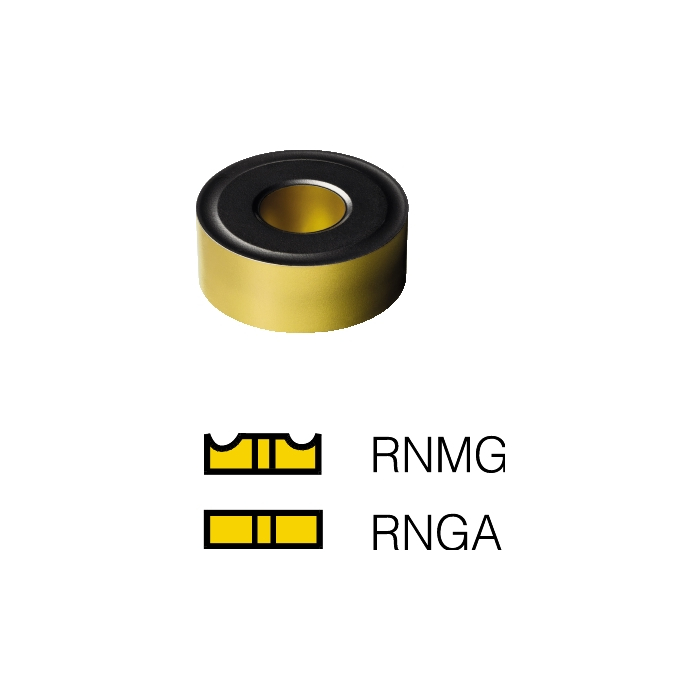

| MIID - Master Insert Identification | RNMG 25 09 00 |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 25 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
