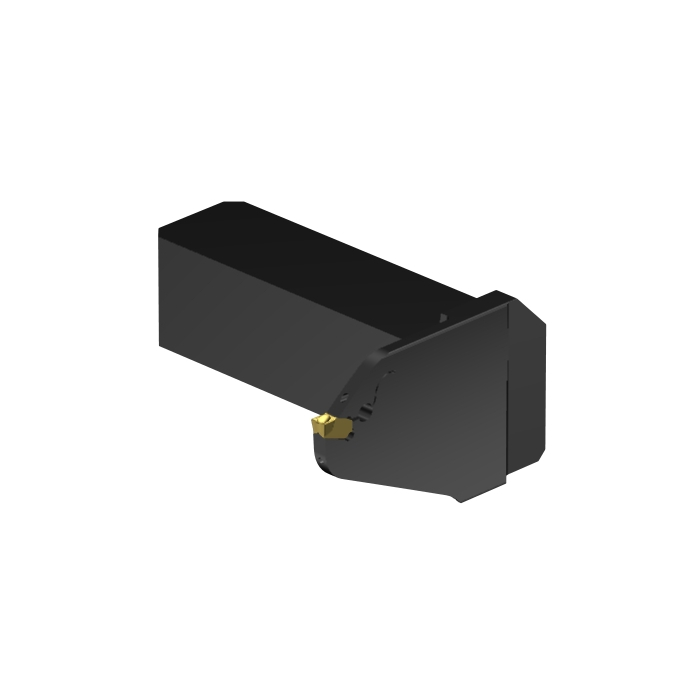

Sandvik Coromant QFT-LGH38C2525-150B CoroCut™ QF QS shank tool for face grooving

R 6 254,85 inc. vat
Out of stock
SKU
7192432
CoroCut® QF QS shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® QF QS shank tool for face grooving
More Information
CP - Coolant Pressure 15000000Pa
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 92mm
WT - Weight Of Item 0.455kg
OAL - Overall Length 131.6mm
OHX - Maximum Overhang 8mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 90deg
OHN - Minimum Overhang 8mm
WF - Functional Width 65.1mm
HF - Functional Height 25mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 3.5mm
H - Shank Height 25mm
CW - Cutting Width 4mm
B - Shank Width 25mm
CDX - Cutting Depth Maximum 38mm
DAXN - Minimum Axial Groove Outside Diameter 158mm
DAXX - Maximum Axial Groove Outside Diameter 310mm
HBL - Head Bottom Offset Length 8mm
ORDCODE QFT-LGH38C2525-150B
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2525_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:17:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CNTH_1
Hand L
MIID - Master Insert Identification QFT-H-0400-03-TF
SSC - Insert Seat Size Code QFT-H
CNT - Coolant Entry Thread Size G 1/8-28
CICT - Cutting Item Count 1
AXGSUP - Axial Groove Support Direction 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
