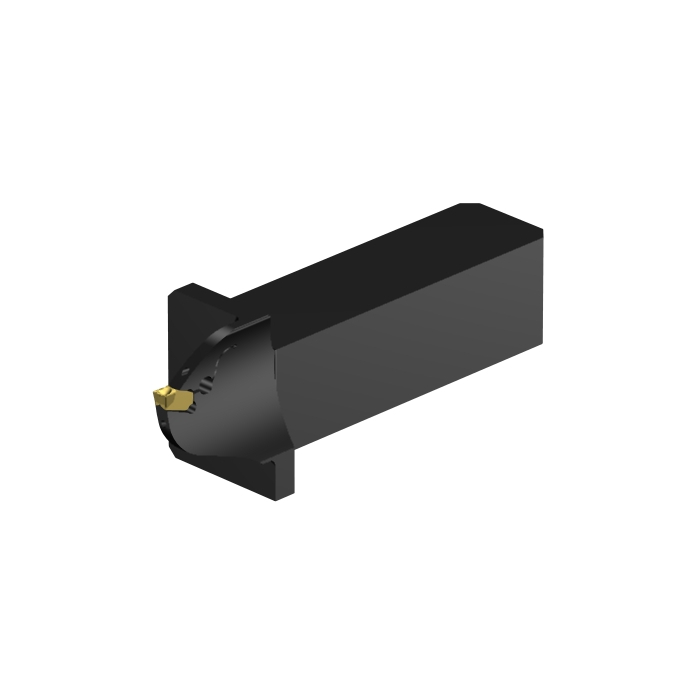

Sandvik Coromant QFT-RFH26C2525-045B CoroCut™ QF QS shank tool for face grooving
Next
Sandvik Coromant QFT-LGH38C2525-150B CoroCut™ QF QS shank tool for face grooving
Previous
![Sandvik Coromant QFT-RFH26C2525-045B CoroCut™ QF QS shank tool for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/62028f7ed/sandvik-coromant-qft-rfh26c2525-045b-corocuttm-qf-qs-shank-tool-for-face-grooving.jpg)
![Sandvik Coromant QFT-LGH38C2525-150B CoroCut™ QF QS shank tool for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/62026945d/sandvik-coromant-qft-lgh38c2525-150b-corocuttm-qf-qs-shank-tool-for-face-grooving.jpg)
R 5 733,90
inc. vat
In stock
SKU
7192433
CoroCut® QF QS shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® QF QS shank tool for face grooving
CP - Coolant Pressure | 15000000Pa |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 115.6mm |
WT - Weight Of Item | 0.445kg |
OAL - Overall Length | 115.6mm |
OHX - Maximum Overhang | 31.6mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 31.6mm |
WF - Functional Width | 25.5mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 3.5mm |
H - Shank Height | 25mm |
CW - Cutting Width | 4mm |
B - Shank Width | 25mm |
CDX - Cutting Depth Maximum | 22mm |
DAXN - Minimum Axial Groove Outside Diameter | 43mm |
DAXX - Maximum Axial Groove Outside Diameter | 55mm |
HBL - Head Bottom Offset Length | 31.6mm |
ORDCODE | QFT-RFH22C2525-035B |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:17:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CNTH_1 |
Hand | R |
MIID - Master Insert Identification | QFT-H-0400-03-TF |
SSC - Insert Seat Size Code | QFT-H |
CNT - Coolant Entry Thread Size | G 1/8-28 |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
