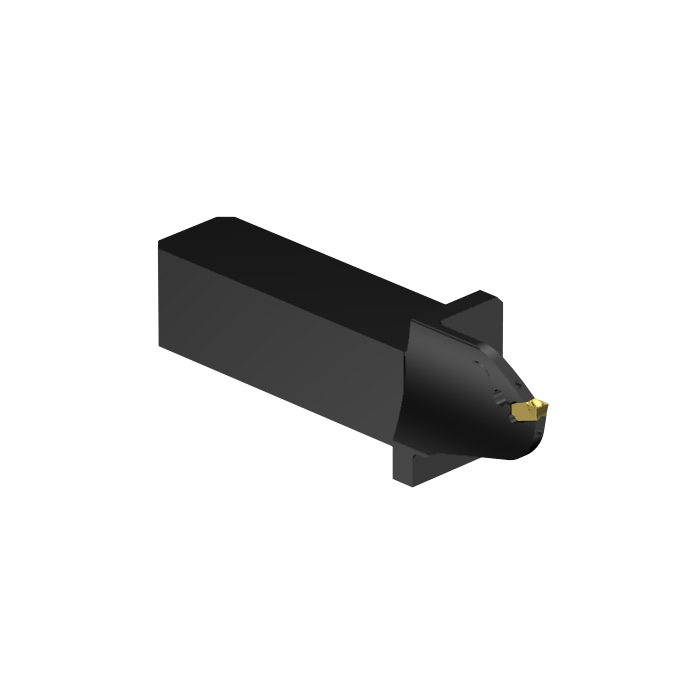

Sandvik Coromant QFU-LFH32C2525-045B CoroCut™ QF QS shank tool for face grooving

Name: Sandvik Coromant QFU-LFH32C2525-045B CoroCut™ QF QS shank tool for face grooving
SKU: 7192415
Price: 5733.90 ZAR
Availability: InStock

Be the first to review this product

R 5 733,90 inc. vat

In stock

SKU

7192415

CoroCut® QF QS shank tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® QF QS shank tool for face grooving

More Information

More Information
CP - Coolant Pressure	15000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125.6mm
WT - Weight Of Item	0.449kg
OAL - Overall Length	125.6mm
OHX - Maximum Overhang	41.6mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	41.6mm
WF - Functional Width	25.5mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	3.5mm
H - Shank Height	25mm
CW - Cutting Width	4mm
B - Shank Width	25mm
CDX - Cutting Depth Maximum	32mm
DAXN - Minimum Axial Groove Outside Diameter	53mm
DAXX - Maximum Axial Groove Outside Diameter	75mm
HBL - Head Bottom Offset Length	41.6mm
ORDCODE	QFU-LFH32C2525-045B
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2525_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:17:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CNUH_1
Hand	L
MIID - Master Insert Identification	QFU-H-0400-03-TF
SSC - Insert Seat Size Code	QFU-H
CNT - Coolant Entry Thread Size	G 1/8-28
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
