R 2 888,80
inc. vat
In stock
SKU
5738712

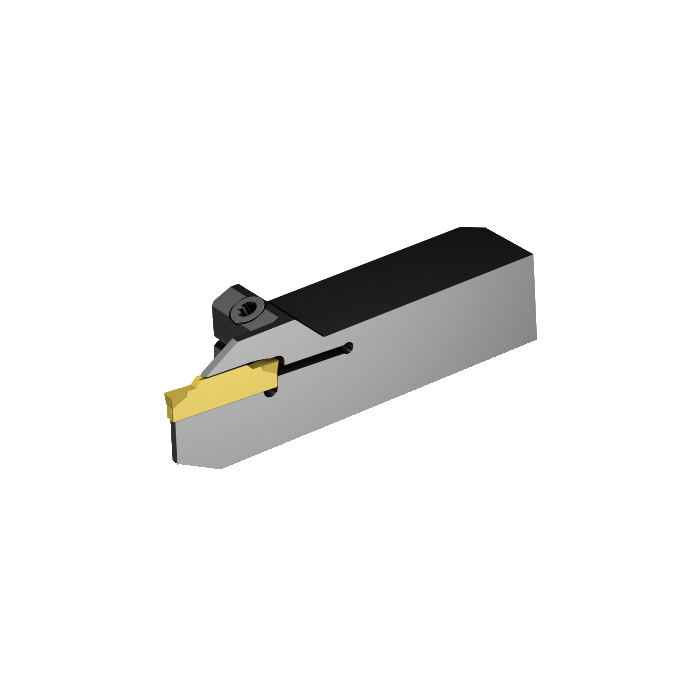

CoroCut® 1-2 QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 QS shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 70mm |
TQ - Torque | 2.5Nm |
WT - Weight Of Item | 0.084kg |
OAL - Overall Length | 70mm |
OHX - Maximum Overhang | 21mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 12.15mm |
HF - Functional Height | 12mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
H - Shank Height | 12mm |
CW - Cutting Width | 2mm |
B - Shank Width | 12mm |
CDX - Cutting Depth Maximum | 11mm |
CUTDIA - Work Piece Parting Diameter Maximum | 22mm |
ORDCODE | QS-LF123E11-1212B |
ADINTMS - Adaptive Interface Machine Direction | M_PMC09_A1212_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:43:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCE2_2 |
Hand | L |
MIID - Master Insert Identification | N123E2-0200-0002-CM |
SSC - Insert Seat Size Code | E |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
