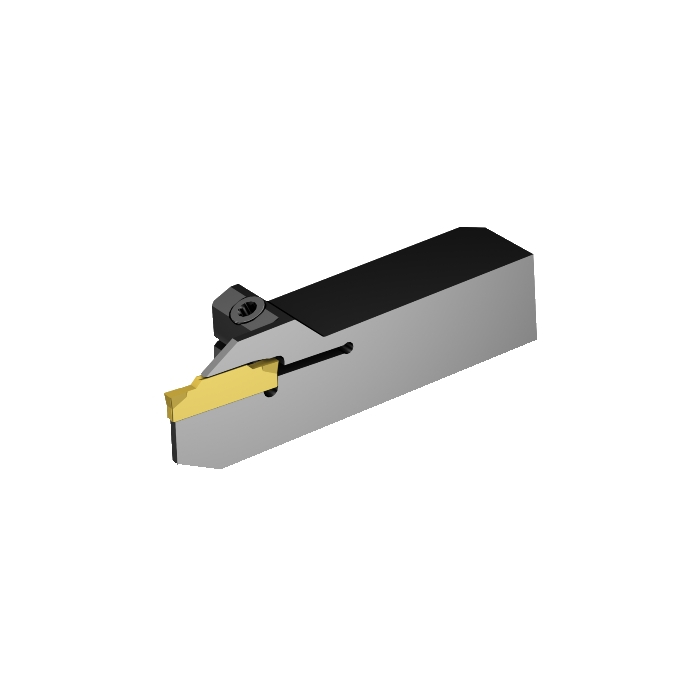

Sandvik Coromant QS-RF123F17-1616B CoroCut™ 1-2 QS shank tool for parting and grooving

R 2 888,80 inc. vat
In stock
SKU
5738705
CoroCut® 1-2 QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 QS shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 70mm
TQ - Torque 2.5Nm
WT - Weight Of Item 0.116kg
OAL - Overall Length 70mm
OHX - Maximum Overhang 26mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 16mm
HF - Functional Height 16mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.3321mm
H - Shank Height 16mm
CW - Cutting Width 2.5mm
B - Shank Width 16mm
CDX - Cutting Depth Maximum 17mm
CUTDIA - Work Piece Parting Diameter Maximum 34mm
ORDCODE QS-RF123F17-1616B
ADINTMS - Adaptive Interface Machine Direction M_PMC09_A1616_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:43:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCF2_2
Hand R
MIID - Master Insert Identification N123F2-0250-0002-CM
SSC - Insert Seat Size Code F
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
