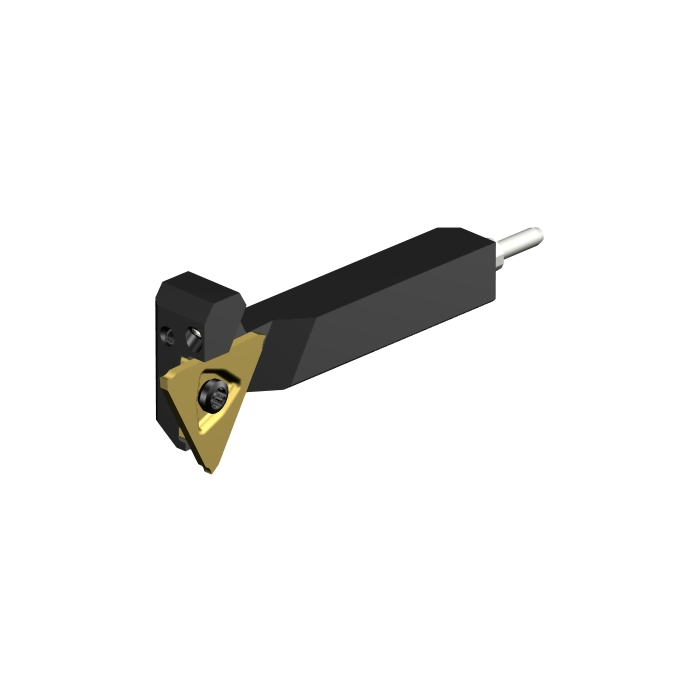

Sandvik Coromant QS-RF123T06-1010BHP CoroCut™ 3 QS shank tool for parting & grooving
R 4 621,85
inc. vat
In stock
SKU
6010196
CoroCut® 3 QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 3 QS shank tool for parting and grooving
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 70mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 0.054kg |
| OAL - Overall Length | 84mm |
| OHX - Maximum Overhang | 23mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 10mm |
| HF - Functional Height | 10mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 3.73mm |
| H - Shank Height | 10mm |
| CW - Cutting Width | 1.5mm |
| B - Shank Width | 10mm |
| CDX - Cutting Depth Maximum | 6.4mm |
| ORDCODE | QS-RF123T06-1010BHP |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC10_A1010_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 7 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:03:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CDT_1 |
| Hand | R |
| MIID - Master Insert Identification | N123T3-0150- CM |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | T |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
