Sandvik Coromant R166.0G-16MM01-250 1020 T-Max™ U-Lock insert for thread turning

Name: Sandvik Coromant R166.0G-16MM01-250 1020 T-Max™ U-Lock insert for thread turning
SKU: 5742276
Price: 424.35 ZAR
Availability: OutOfStock

Be the first to review this product

R 424,35 inc. vat

Out of stock

SKU

5742276

T-Max® U-Lock insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock insert for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	4.5g
AN - Clearance Angle Major	0deg

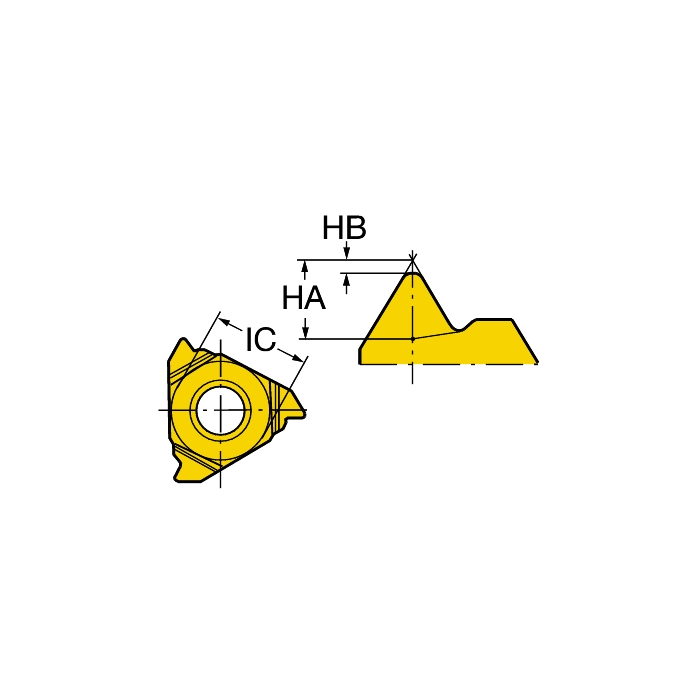

IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
D1 - Fixing Hole Diameter	4.4mm
HA - Theoretical Thread Height	1.87mm
HB - Thread Height Difference	0.36mm
TP - Thread Pitch	2.5mm
PDX - Profile Distance Ex	1.4mm
PDY - Profile Distance Ey	1.32mm
ORDCODE	R166.0G-16MM01-250 1020
CHANGEDATE	2021-12-21 06:34:00.000
STDNO - Standard Number	ISO 965-1998
Hand	R
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TBE16R_1
Grade	1020
COATING	PVD TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	A
THFT - Thread Form Type	M60
TPT - Thread Profile Type	F
TTP - Thread Type	EXT
TCTR - Thread Tolerance Class	IT 6
CEDC - Cutting Edge Count	3
NT - Tooth Count	1
