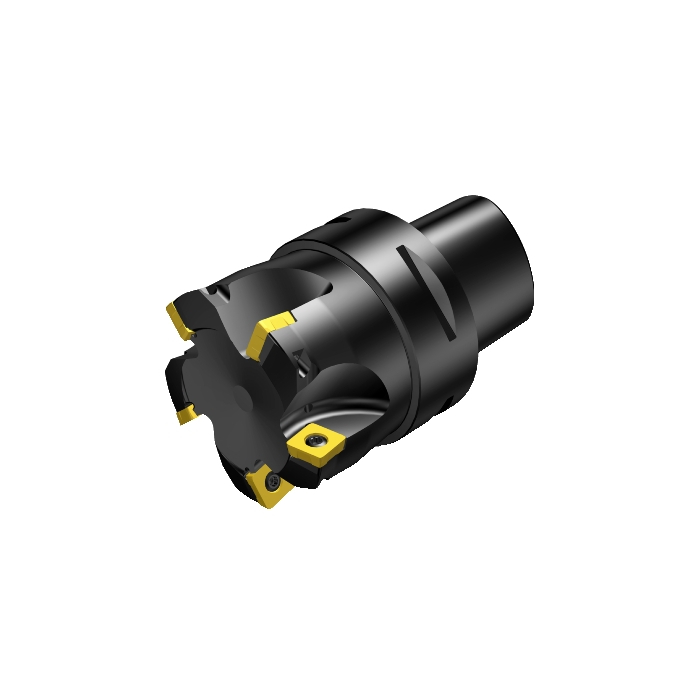

Sandvik Coromant R210-042C4-09M CoroMill™ 210 face milling cutter

R 7 725,70 inc. vat
In stock
SKU
5742551
CoroMill® 210 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 210 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 28mm
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
BD - Body Diameter 38.96mm
LB - Body Length 60mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 276001/min
WT - Weight Of Item 540g
OAL - Overall Length 84mm
OHX - Maximum Overhang 60mm
KAPR - Tool Cutting Edge Angle 10deg
RMPX - Maximum Ramping Angle 5deg
GAMO - Orthogonal Rake Angle 2deg
LAMS - Inclination Angle -1deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.4mm
Insert Thickness 4mm
APMX - Depth Of Cut Maximum 1.2mm
DC - Cutting Diameter 27.9mm
DCF - Cutting Diameter Face Contact 27.9mm
GAMF - Radial Rake Angle 1.3321049deg
GAMP - Axial Rake Angle 1.7961615deg
DCX - Maximum Cutting Diameter 42mm
AZ - Maximum Plunge Depth 1.8mm
ORDCODE R210-042C4-09M
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0400_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:45:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MA0904_1
Hand R
MIID - Master Insert Identification R210-090412M-
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 09
CICT - Cutting Item Count 3
ZEFP - Peripheral Effective Cutting Edge Count 3
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
