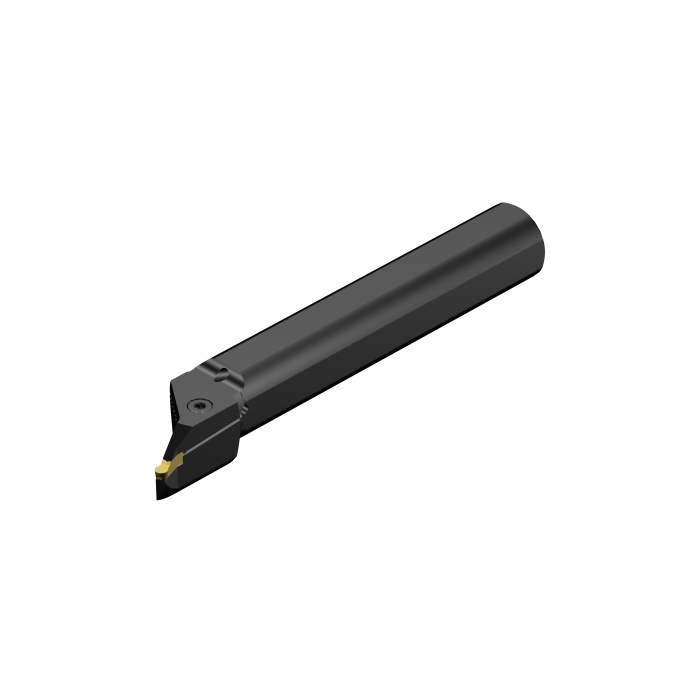

Sandvik Coromant RAX123J094-24B-020 CoroCut™ 1-2 boring bar for profiling
R 7 186,35
inc. vat
In stock
SKU
5738308
CoroCut® 1-2 boring bar for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 boring bar for profiling
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 38.1mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 254mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 1.779kg |
| OAL - Overall Length | 254mm |
| OHX - Maximum Overhang | 152.4mm |
| LSC - Clamping Length | 189.5mm |
| RMPX - Maximum Ramping Angle | 20deg |
| DMIN - Minimum Bore Diameter | 63.5mm |
| BAWS - Workpiece Side Body Angle | 20deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 64.5mm |
| WF - Functional Width | 24.4mm |
| HF - Functional Height | 17.45mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| H - Shank Height | 34.9mm |
| LPR - Protruding Length | 254mm |
| CW - Cutting Width | 6mm |
| CDX - Cutting Depth Maximum | 23.9mm |
| ORDCODE | RAX123J094-24B-020 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_S1500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-14 16:04:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCJ2_3 |
| Hand | R |
| MIID - Master Insert Identification | N123J2-0600- AM |
| SSC - Insert Seat Size Code | J |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
