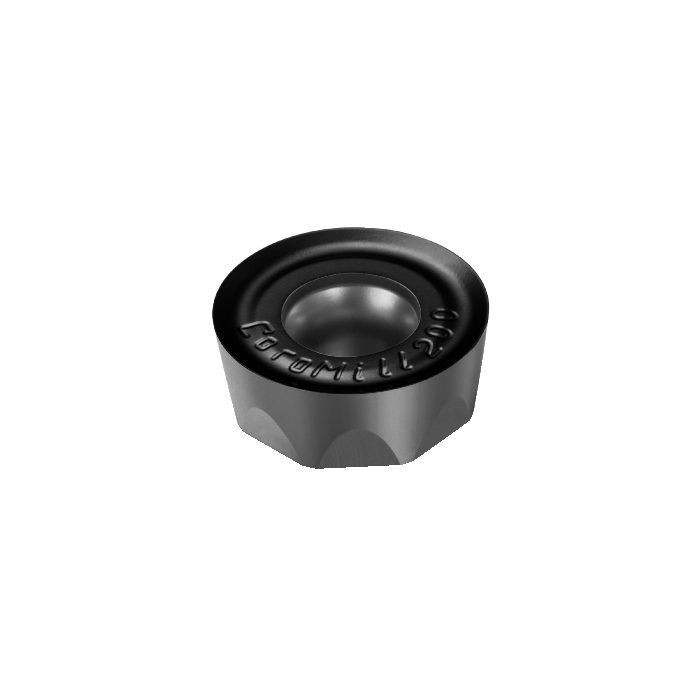

Sandvik Coromant RCHT 09 T3 00-ML 1040 CoroMill™ 200 insert for milling

R 217,35 inc. vat
In stock
SKU
5907148
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2.5g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 4.7625mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4mm
APMX - Depth Of Cut Maximum 4.7625mm
ORDCODE RCHT 09 T3 00-ML 1040
CHANGEDATE 2021-12-17 20:29:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_RC09T3_1
Grade 1040
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation ML
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
