Sandvik Coromant RCMT 12 04 00 235 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant RCKT 13 04 00-MM 2030 CoroMill™ 200 insert for milling
Previous
![Sandvik Coromant RCMT 12 04 00 235 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4803972e1/sandvik-coromant-rcmt-12-04-00-235-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant RCKT 13 04 00-MM 2030 CoroMill™ 200 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4803709a6/sandvik-coromant-rckt-13-04-00-mm-2030-coromilltm-200-insert-for-milling.jpg)
R 223,10
inc. vat
In stock
SKU
5740567
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

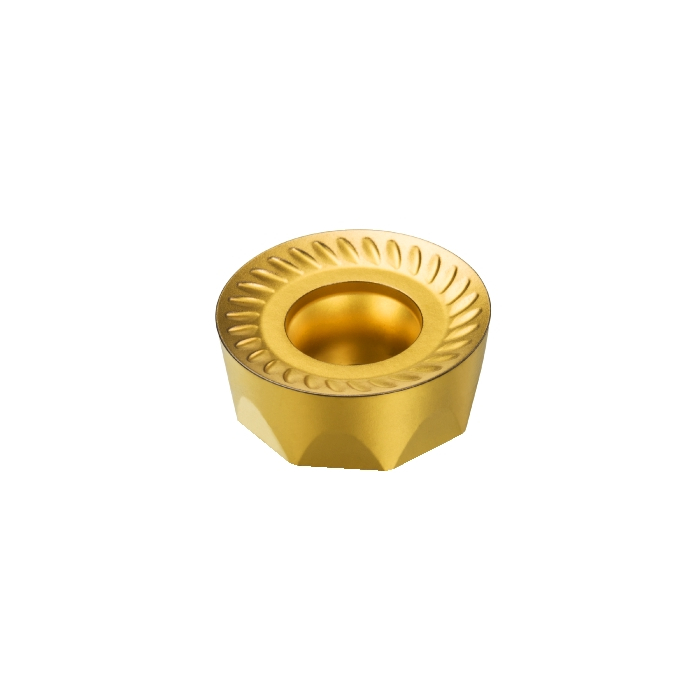

CoroMill® 200 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 6.2g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 6.35mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 4mm |
APMX - Depth Of Cut Maximum | 1.86mm |
ORDCODE | RCKT 13 04 00-MM 2040 |
CHANGEDATE | 2021-12-17 18:33:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 13 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC1304_2 |
Grade | 2040 |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MM |
CEDC - Cutting Edge Count | 8 |
WEP - Wiper Edge Property | False |
