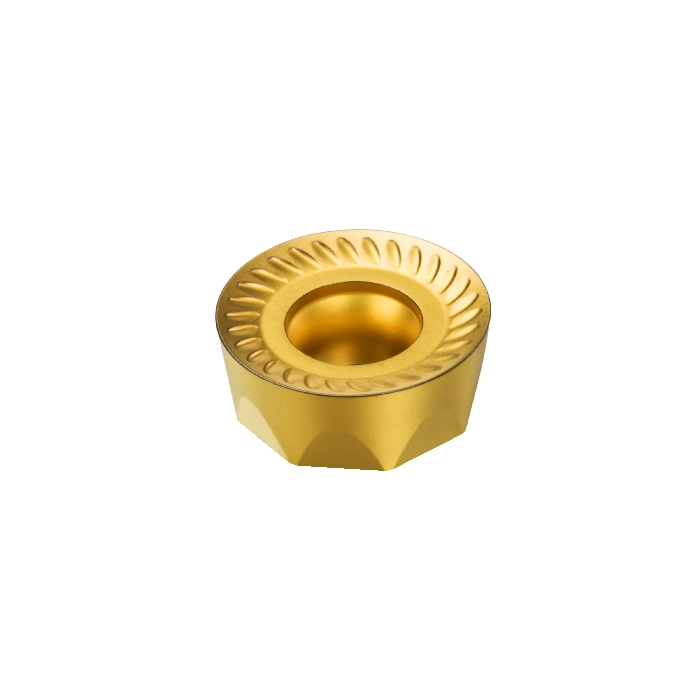

Sandvik Coromant RCKT 16 06 M0-MM 2040 CoroMill™ 200 insert for milling

R 323,15 inc. vat
In stock
SKU
5740452
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 12g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 16mm
RE - Corner Radius 8mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 5.5mm
APMX - Depth Of Cut Maximum 2.34mm
ORDCODE RCKT 16 06 M0-MM 2040
CHANGEDATE 2021-12-17 18:32:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_RC1606M_1
Grade 2040
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MM
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
