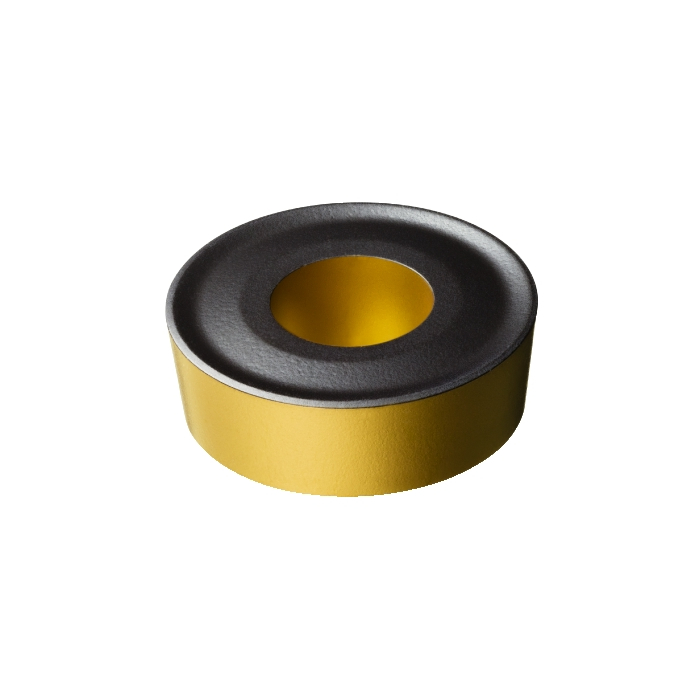

Sandvik Coromant RCMX 20 06 00 4215 T-Max™ P insert for turning
R 493,35
inc. vat
In stock
SKU
5741056
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 22.9g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 20mm |
| RE - Corner Radius | 10mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 6.5mm |
| BN - Face Land Width | 0.3mm |
| GB - Face Land Angle | 15deg |
| ORDCODE | RCMX 20 06 00 4215 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-17 18:36:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 20 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC2006M_1 |
| Grade | 4215 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 00 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
