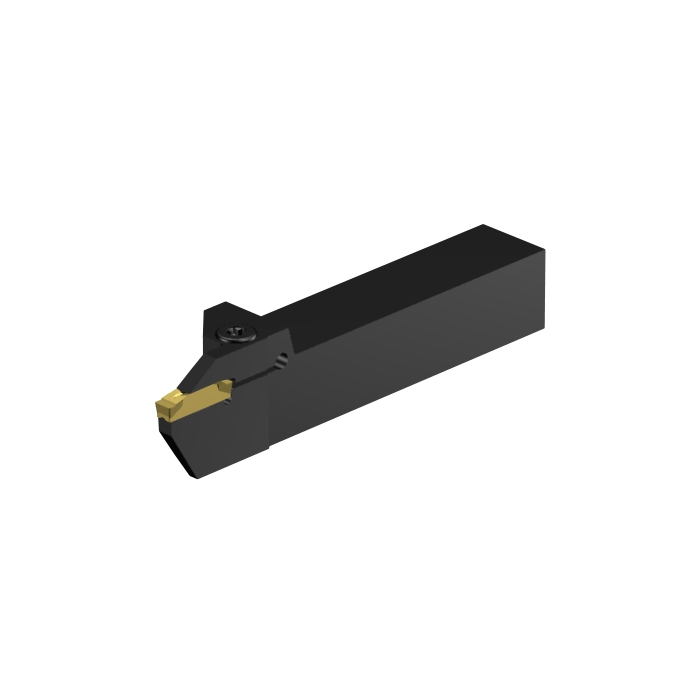

Sandvik Coromant RF123K100-16B-220BM CoroCut™ 1-2 shank tool for face grooving

Name: Sandvik Coromant RF123K100-16B-220BM CoroCut™ 1-2 shank tool for face grooving
SKU: 5741177
Price: 2941.70 ZAR
Availability: InStock

Be the first to review this product

R 2 941,70 inc. vat

In stock

SKU

5741177

CoroCut® 1-2 shank tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for face grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	152.4mm
TQ - Torque	5Nm
WT - Weight Of Item	668g
OAL - Overall Length	152.4mm
OHX - Maximum Overhang	49.403mm
LSC - Clamping Length	102.997mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	26.3906mm
HF - Functional Height	25.4mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	25.4mm
CW - Cutting Width	6mm
B - Shank Width	25.4mm
CDX - Cutting Depth Maximum	25.4mm
DAXN - Minimum Axial Groove Outside Diameter	232mm
DAXX - Maximum Axial Groove Outside Diameter	1000mm
ORDCODE	RF123K100-16B-220BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:44:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCK2_5
Hand	R
MIID - Master Insert Identification	N123K2-0600-0004-TF
SSC - Insert Seat Size Code	K
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
