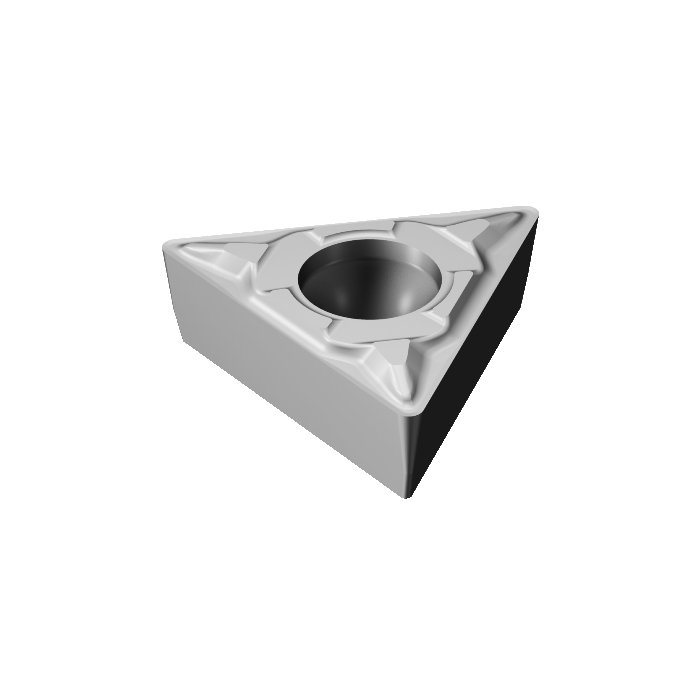

Sandvik Coromant TCMT 09 02 02-KF H13A CoroTurn™ 107 insert for turning

R 124,20 inc. vat
In stock
SKU
5752010
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.1g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 5.55625mm
RE - Corner Radius 0.2mm
Insert Thickness 2.38125mm
D1 - Fixing Hole Diameter 2.5mm
LE - Cutting Edge Effective Length 9.17mm
L - Cutting Edge Length 9.624mm
ORDCODE TCMT 09 02 02-KF H13A
CHANGEDATE 2021-12-17 19:20:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TC0902_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation KF
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property False
