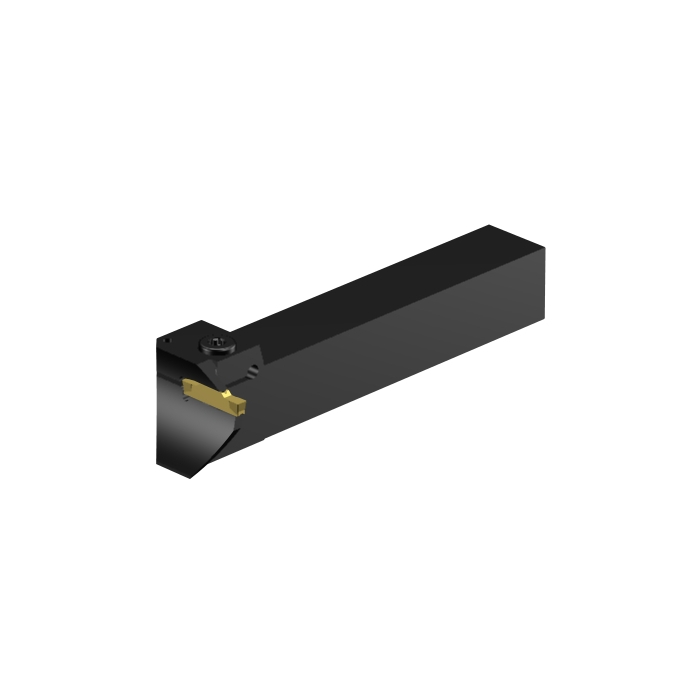

Sandvik Coromant RG123H050-16B-052BM CoroCut™ 1-2 shank tool for face grooving
R 3 236,10
inc. vat
In stock
SKU
5853816
CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 152.4mm |
| TQ - Torque | 2.982804Nm |
| WT - Weight Of Item | 0.811kg |
| OAL - Overall Length | 165.1mm |
| OHX - Maximum Overhang | 23.9mm |
| LSC - Clamping Length | 128.5mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 40mm |
| HF - Functional Height | 25.4mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| H - Shank Height | 25.4mm |
| LPR - Protruding Length | 165.1mm |
| CW - Cutting Width | 4mm |
| B - Shank Width | 25.4mm |
| CDX - Cutting Depth Maximum | 12.7mm |
| DAXN - Minimum Axial Groove Outside Diameter | 60mm |
| DAXX - Maximum Axial Groove Outside Diameter | 72mm |
| ORDCODE | RG123H050-16B-052BM |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1616_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 16:06:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_5 |
| Hand | R |
| MIID - Master Insert Identification | N123H2-0400-0004-TF |
| SSC - Insert Seat Size Code | H |
| CICT - Cutting Item Count | 1 |
| AXGSUP - Axial Groove Support Direction | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
