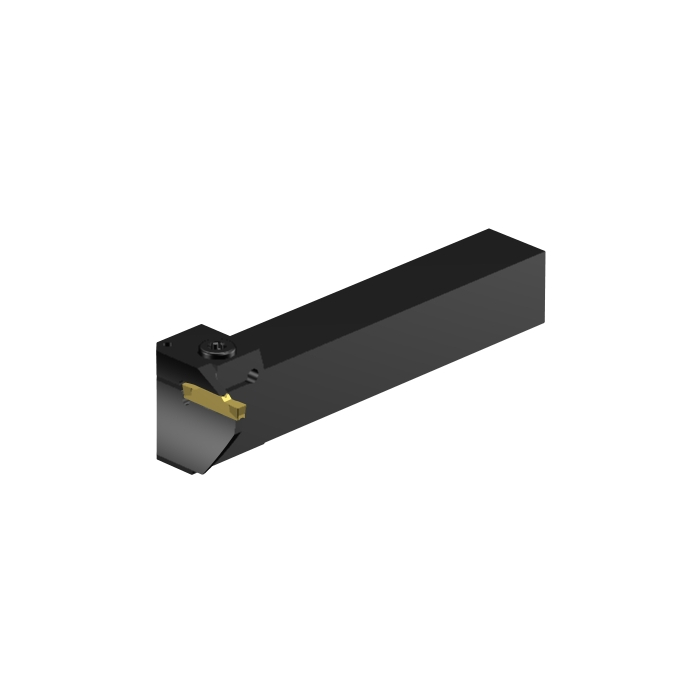

Sandvik Coromant RG123H050-16B-064BM CoroCut™ 1-2 shank tool for face grooving

Name: Sandvik Coromant RG123H050-16B-064BM CoroCut™ 1-2 shank tool for face grooving
SKU: 5853817
Price: 3236.10 ZAR
Availability: InStock

Be the first to review this product

R 3 236,10 inc. vat

In stock

SKU

5853817

CoroCut® 1-2 shank tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for face grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	152.4mm
TQ - Torque	3.118386Nm
WT - Weight Of Item	0.806kg
OAL - Overall Length	160.6mm
OHX - Maximum Overhang	23.9mm
LSC - Clamping Length	128.5mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	40mm
HF - Functional Height	25.4mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	25.4mm
LPR - Protruding Length	160.6mm
CW - Cutting Width	4mm
B - Shank Width	25.4mm
CDX - Cutting Depth Maximum	12.7mm
DAXN - Minimum Axial Groove Outside Diameter	72mm
DAXX - Maximum Axial Groove Outside Diameter	100mm
ORDCODE	RG123H050-16B-064BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:06:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCH2_5
Hand	R
MIID - Master Insert Identification	N123H2-0400-0004-TF
SSC - Insert Seat Size Code	H
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
