Sandvik Coromant RG123H13-2525B-220BM CoroCut™ 1-2 shank tool for face grooving
Next
Sandvik Coromant RG123H13-2525B-092BM CoroCut™ 1-2 shank tool for face grooving
Previous
![Sandvik Coromant RG123H13-2525B-220BM CoroCut™ 1-2 shank tool for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/53492dd0c/sandvik-coromant-rg123h13-2525b-220bm-corocuttm-1-2-shank-tool-for-face-grooving.jpg)
![Sandvik Coromant RG123H13-2525B-092BM CoroCut™ 1-2 shank tool for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/53490711e/sandvik-coromant-rg123h13-2525b-092bm-corocuttm-1-2-shank-tool-for-face-grooving.jpg)
R 3 236,10
inc. vat
In stock
SKU
5853791

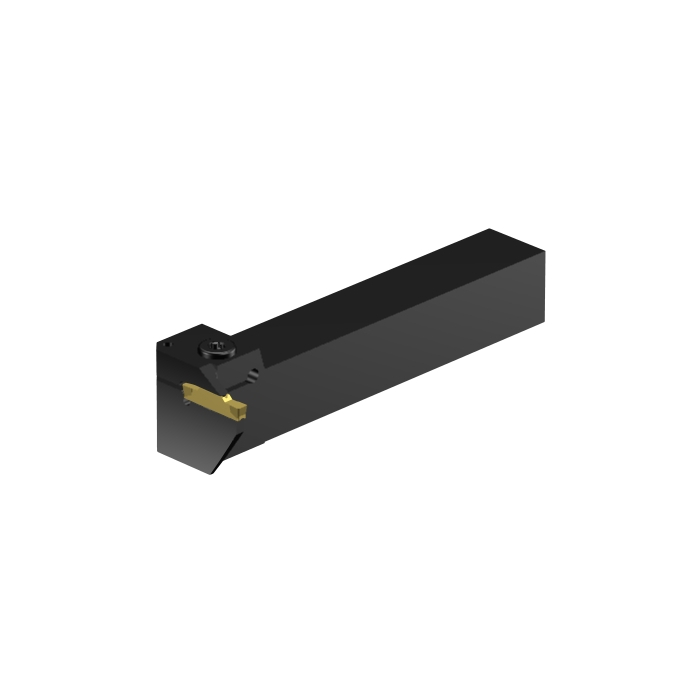

CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 150mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 772g |
OAL - Overall Length | 154.5mm |
OHX - Maximum Overhang | 23.9mm |
LSC - Clamping Length | 126.1mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 40mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
H - Shank Height | 25mm |
LPR - Protruding Length | 154.5mm |
CW - Cutting Width | 4mm |
B - Shank Width | 25mm |
CDX - Cutting Depth Maximum | 13mm |
DAXN - Minimum Axial Groove Outside Diameter | 140mm |
DAXX - Maximum Axial Groove Outside Diameter | 230mm |
ORDCODE | RG123H13-2525B-132BM |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 16:05:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_5 |
Hand | R |
MIID - Master Insert Identification | N123H2-0400-0004-TF |
SSC - Insert Seat Size Code | H |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
