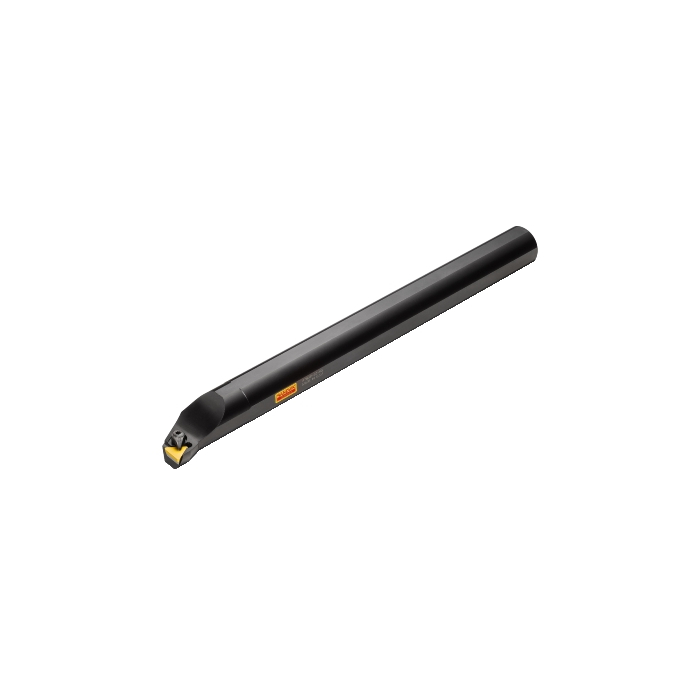

Sandvik Coromant RTBAP 12M 2 T-Max™ S boring bar for turning
R 2 655,35
inc. vat
In stock
SKU
5741322
T-Max® S boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S boring bar for turning
| DCON - Connection Diameter | 19.05mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 249.936mm |
| BD - Body Diameter | 19.05mm |
| TQ - Torque | 3.5Nm |
| WT - Weight Of Item | 0.497kg |
| OAL - Overall Length | 249.936mm |
| OHX - Maximum Overhang | 76.2mm |
| LSC - Clamping Length | 216.8mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 0deg |
| DMIN - Minimum Bore Diameter | 25.4mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 38.1mm |
| WF - Functional Width | 12.7mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 6deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.396875mm |
| Insert Thickness | 3.175mm |
| H - Shank Height | 17.9832mm |
| ORDCODE | RTBAP 12M 2 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_R7500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-07 01:39:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TP1103_4 |
| Hand | R |
| MIID - Master Insert Identification | TPUN 11 03 04 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 11 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
