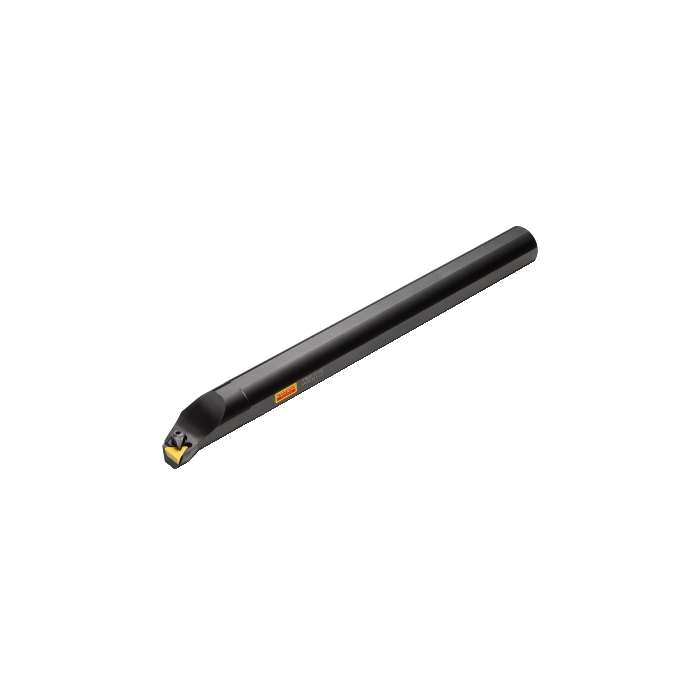

Sandvik Coromant RTBAP 16M 3 T-Max™ S boring bar for turning

Name: Sandvik Coromant RTBAP 16M 3 T-Max™ S boring bar for turning
SKU: 5741324
Price: 3052.10 ZAR
Availability: InStock

R 3 052,10 inc. vat

In stock

SKU

5741324

T-Max® S boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® S boring bar for turning

More Information
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	299.974mm
BD - Body Diameter	25.4mm
TQ - Torque	5Nm
WT - Weight Of Item	1.08kg
OAL - Overall Length	299.974mm
OHX - Maximum Overhang	101.6mm
LSC - Clamping Length	259.8mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	32.5mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	50.8mm
WF - Functional Width	16.256mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.79375mm
Insert Thickness	3.175mm
H - Shank Height	23.0124mm
ORDCODE	RTBAP 16M 3
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_S1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 01:39:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TP1603_2
Hand	R
MIID - Master Insert Identification	TPUN 16 03 08
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
