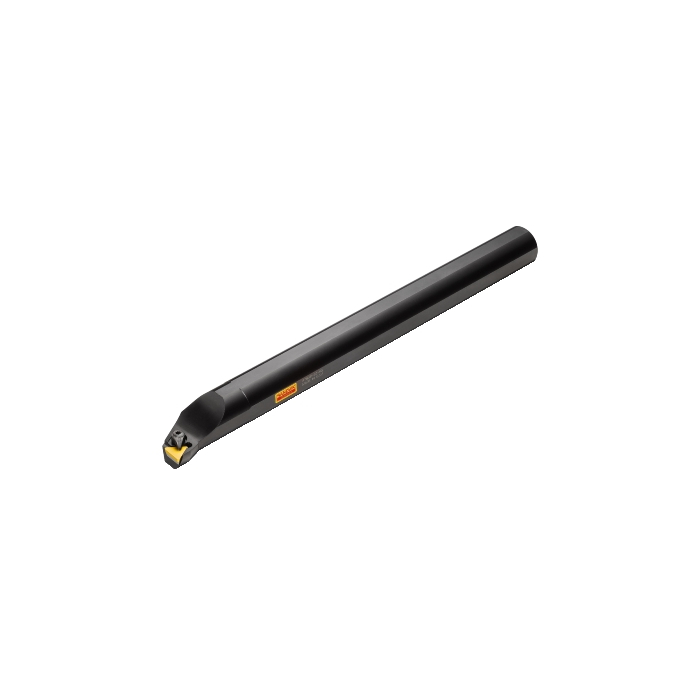

Sandvik Coromant RTBAP 24M 3 T-Max™ S boring bar for turning

R 4 849,55 inc. vat
Out of stock
SKU
5741328
T-Max® S boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S boring bar for turning
More Information
DCON - Connection Diameter 38.1mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 355.6mm
BD - Body Diameter 38.1mm
TQ - Torque 5Nm
WT - Weight Of Item 2.9kg
OAL - Overall Length 355.6mm
OHX - Maximum Overhang 152.4mm
LSC - Clamping Length 281.9mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 0deg
DMIN - Minimum Bore Diameter 45.212mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 76.2mm
WF - Functional Width 22.606mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 6deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.79375mm
Insert Thickness 3.175mm
H - Shank Height 34.8996mm
ORDCODE RTBAP 24M 3
ADINTMS - Adaptive Interface Machine Direction M_CYLF3_S1500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-04-07 01:39:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_TP1603_2
Hand R
MIID - Master Insert Identification TPUN 16 03 08
SC - Insert Shape Code T
SSC - Insert Seat Size Code 16
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
