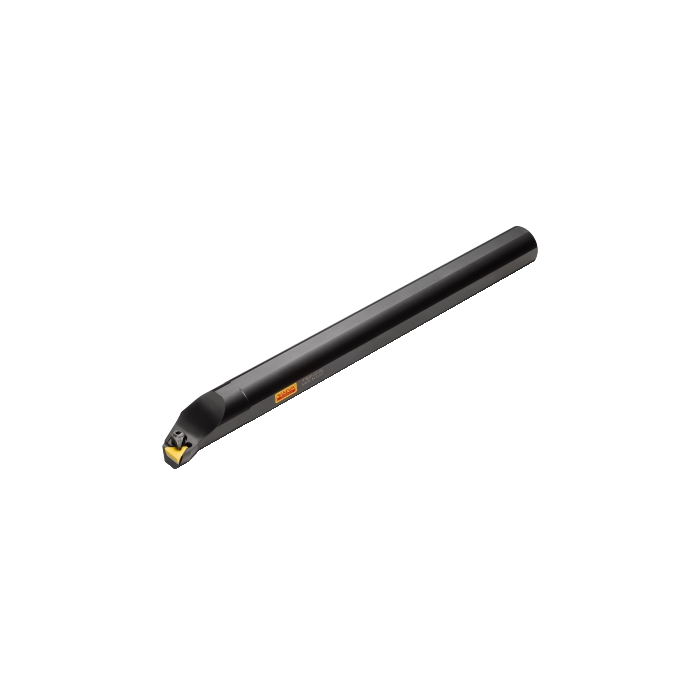

Sandvik Coromant RTBAP 24M 4 T-Max™ S boring bar for turning

Name: Sandvik Coromant RTBAP 24M 4 T-Max™ S boring bar for turning
SKU: 5741332
Price: 4849.55 ZAR
Availability: InStock

R 4 849,55 inc. vat

In stock

SKU

5741332

T-Max® S boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® S boring bar for turning

More Information
DCON - Connection Diameter	38.1mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	379.984mm
BD - Body Diameter	38.1mm
TQ - Torque	7.5Nm
WT - Weight Of Item	3.1kg
OAL - Overall Length	379.984mm
OHX - Maximum Overhang	152.4mm
LSC - Clamping Length	303.8mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	52.3748mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	76.2mm
WF - Functional Width	26.1874mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	4.7625mm
H - Shank Height	34.8996mm
ORDCODE	RTBAP 24M 4
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_S1500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 01:39:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TP2204_1
Hand	R
MIID - Master Insert Identification	TPUN 22 04 08
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	22
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
