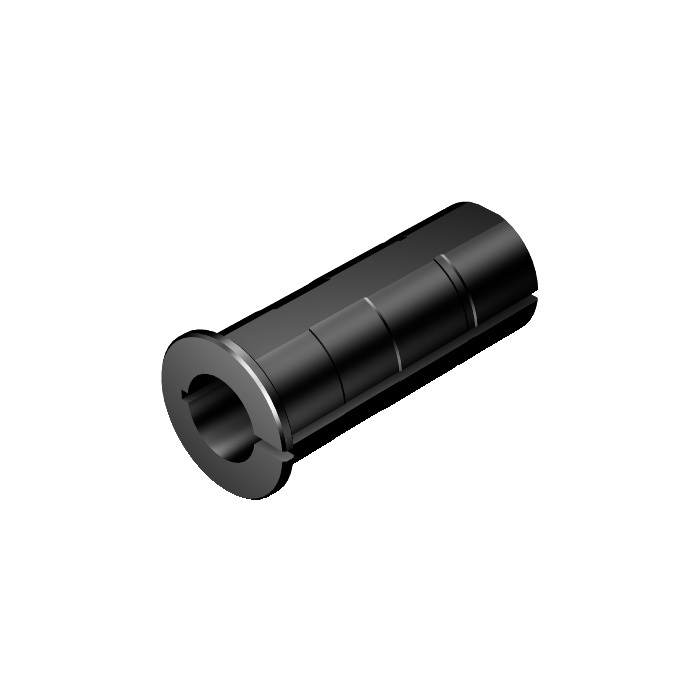

Sandvik Coromant 132L-A40-A20 Cylindrical sleeve

R 7 616,45 inc. vat
In stock
SKU
7251709
Cylindrical sleeve
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical sleeve
More Information
CP - Coolant Pressure 15000000Pa
DCON - Connection Diameter 31.75mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5mm
BD - Body Diameter 73.5mm
LB - Body Length 5mm
BHTA - Body Half Taper Angle 0deg
WT - Weight Of Item 2.3kg
OAL - Overall Length 127mm
OHX - Maximum Overhang 5mm
LSC - Clamping Length 122mm
ORDCODE 132L-A40-A20
ADINTMS - Adaptive Interface Machine Direction M_CYLR1_S2500_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLS_S1250_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2021-12-22 15:23:00.000
TCDCON - Connection Diameter Tolerance h6
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property False
SEAL - Sealing Property False
