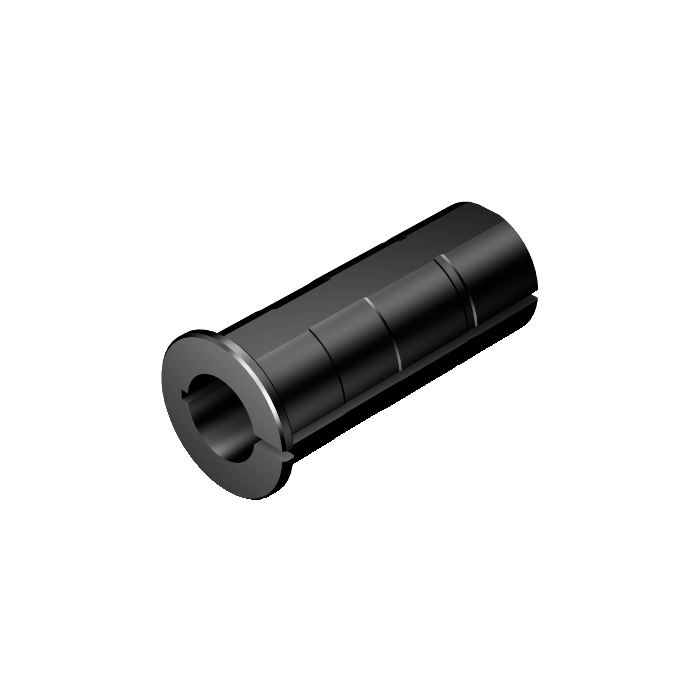

Sandvik Coromant 132L-A32-A24 Cylindrical sleeve
R 9 923,35
inc. vat
In stock
SKU
7251710
Cylindrical sleeve
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical sleeve
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DCON - Connection Diameter | 38.1mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 5mm |
| BD - Body Diameter | 60.8mm |
| LB - Body Length | 5mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 1.169kg |
| OAL - Overall Length | 152.4mm |
| OHX - Maximum Overhang | 5mm |
| LSC - Clamping Length | 147.4mm |
| ORDCODE | 132L-A32-A24 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR1_S2000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLS_S1500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-22 15:23:00.000 |
| TCDCON - Connection Diameter Tolerance | h6 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
| SEAL - Sealing Property | False |
