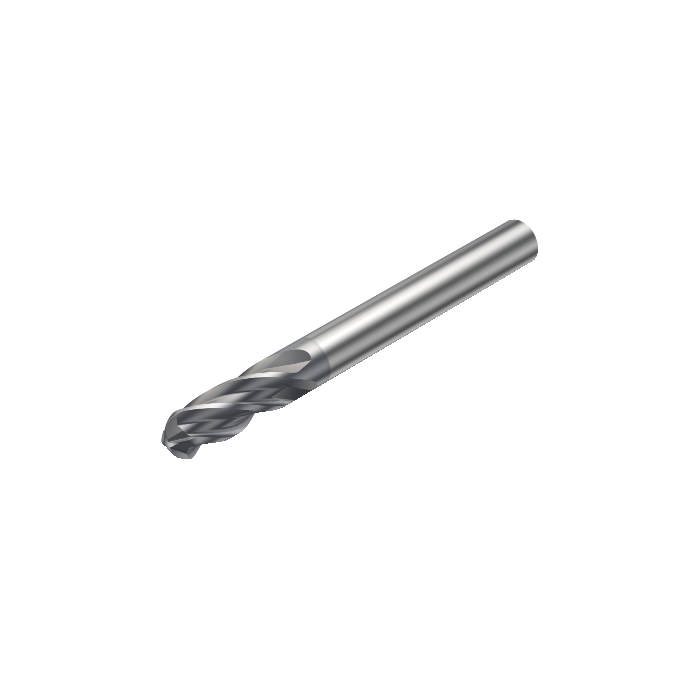

Sandvik Coromant 1B240-1000-XA 1630 CoroMill™ Plura solid carbide ball nose end mill for Profiling

R 2 264,35 inc. vat
In stock
SKU
6259463
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
More Information
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.114kg
OAL - Overall Length 100mm
OHX - Maximum Overhang 60mm
RMPX - Maximum Ramping Angle 15deg
RE - Corner Radius 5mm
LU - Usable Length 22mm
APMX - Depth Of Cut Maximum 22mm
DC - Cutting Diameter 10mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 1.5deg
PSIR - Tool Lead Angle 0deg
ULDR - Usable Length Diameter Ratio 2.2
DCTOLL - Lower Cutting Diameter Tolerance -0.019mm
DCTOLU - Upper Cutting Diameter Tolerance 0mm
ORDCODE 1B240-1000-XA 1630
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-13 12:07:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1630
COATING PVD AlCrN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
