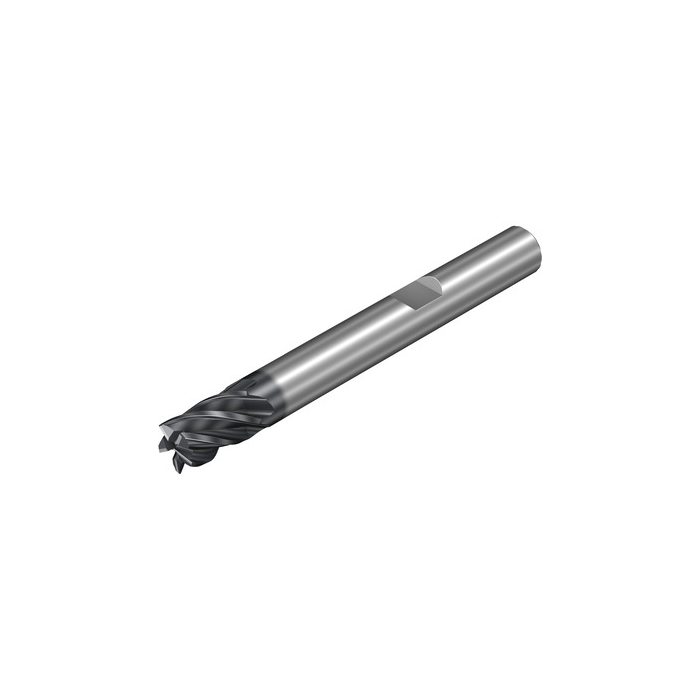

Sandvik Coromant 1K325-1200-XB 1730 CoroMill™ Dura solid carbide end mill for General Machining
Next
Sandvik Coromant 1K325-0800-XB 1730 CoroMill™ Dura solid carbide end mill for General Machining
Previous
![Sandvik Coromant 1K325-1200-XB 1730 CoroMill™ Dura solid carbide end mill for General Machining](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7214132cb/sandvik-coromant-1k325-1200-xb-1730-coromilltm-dura-solid-carbide-end-mill-for-general-machining.jpg)
![Sandvik Coromant 1K325-0800-XB 1730 CoroMill™ Dura solid carbide end mill for General Machining](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/721393b70/sandvik-coromant-1k325-0800-xb-1730-coromilltm-dura-solid-carbide-end-mill-for-general-machining.jpg)
R 1 506,50
inc. vat
In stock
SKU
8213555
CoroMill® Dura solid carbide end mill for General Machining
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Dura solid carbide end mill for General Machining
DCON - Connection Diameter | 10mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 66mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.068kg |
OAL - Overall Length | 66mm |
OHX - Maximum Overhang | 26mm |
LSC - Clamping Length | 40mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 10deg |
H - Shank Height | 8.4mm |
LU - Usable Length | 15mm |
MHD - Mounting Hole Distance | 20mm |
APMX - Depth Of Cut Maximum | 15mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.2mm |
DC - Cutting Diameter | 10mm |
DCF - Cutting Diameter Face Contact | 9.6mm |
FHA - Flute Helix Angle | 36.5deg |
GAMF - Radial Rake Angle | 10deg |
GAMP - Axial Rake Angle | 5deg |
ULDR - Usable Length Diameter Ratio | 1.5 |
ORDCODE | 1K325-1000-XB 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G1000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-09-26 14:31:00.000 |
STDLET - Standard Letter | WE |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1730 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | True |
