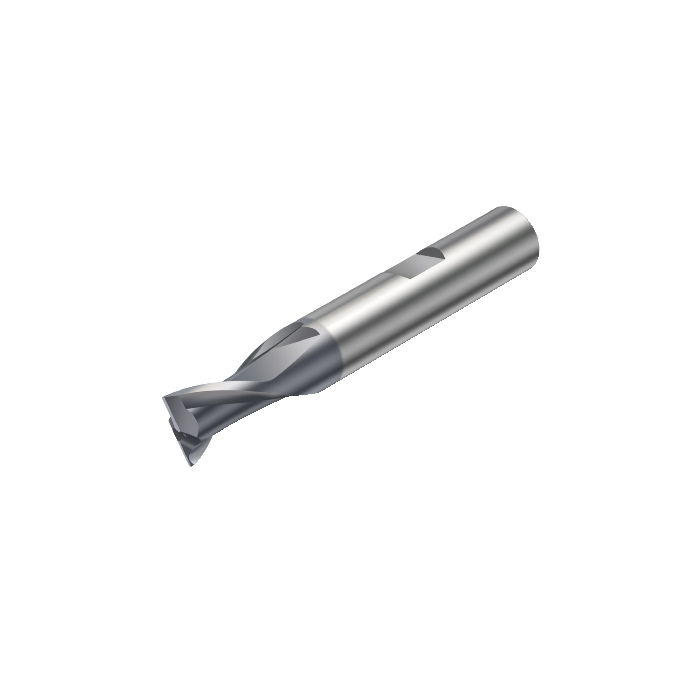

Sandvik Coromant 1P220-1370-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing

R 2 564,50 inc. vat
In stock
SKU
6259524
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
More Information
DCON - Connection Diameter 14mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 75mm
RPMX - Rotational Speed Maximum 577001/min
WT - Weight Of Item 0.168kg
OAL - Overall Length 75mm
OHX - Maximum Overhang 30mm
LSC - Clamping Length 45mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 9deg
H - Shank Height 12.7mm
LU - Usable Length 14.5mm
MHD - Mounting Hole Distance 22.5mm
APMX - Depth Of Cut Maximum 14.5mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.2mm
DC - Cutting Diameter 13.7mm
DCF - Cutting Diameter Face Contact 13.3mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 9deg
GAMP - Axial Rake Angle 5.5deg
ULDR - Usable Length Diameter Ratio 1.058394160584
DCTOLL - Lower Cutting Diameter Tolerance -0.055mm
DCTOLU - Upper Cutting Diameter Tolerance -0.035mm
ORDCODE 1P220-1370-XB 1630
ADINTMS - Adaptive Interface Machine Direction M_CYLW_G1400_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:32:00.000
STDLET - Standard Letter WE
STDNO - Standard Number ISO3338-2
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1630
COATING PVD AlCrN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6527 K
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
