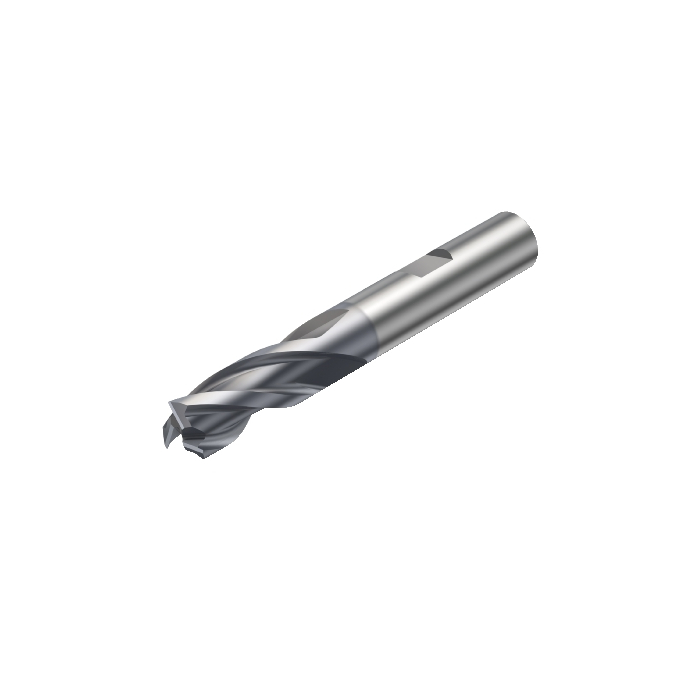

Sandvik Coromant 1P231-1300-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
Next
Sandvik Coromant 1P231-0750-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
Previous
![Sandvik Coromant 1P231-1300-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66349ffc3/sandvik-coromant-1p231-1300-xb-1630-coromilltm-plura-solid-carbide-end-mill-for-heavy-roughing.jpg)
![Sandvik Coromant 1P231-0750-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/663471f8c/sandvik-coromant-1p231-0750-xb-1630-coromilltm-plura-solid-carbide-end-mill-for-heavy-roughing.jpg)
R 1 658,30
inc. vat
In stock
SKU
6259714
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
DCON - Connection Diameter | 12mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 83mm |
BHTA - Body Half Taper Angle | 30deg |
RPMX - Rotational Speed Maximum | 509001/min |
WT - Weight Of Item | 0.122kg |
OAL - Overall Length | 83mm |
OHX - Maximum Overhang | 38mm |
LSC - Clamping Length | 45mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 8deg |
H - Shank Height | 10.4mm |
LU - Usable Length | 22.5mm |
MHD - Mounting Hole Distance | 22.5mm |
APMX - Depth Of Cut Maximum | 22.5mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.2mm |
DC - Cutting Diameter | 11mm |
DCF - Cutting Diameter Face Contact | 10.6mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 9deg |
GAMP - Axial Rake Angle | 5.5deg |
ULDR - Usable Length Diameter Ratio | 2.045454545455 |
DCTOLL - Lower Cutting Diameter Tolerance | -0.07mm |
DCTOLU - Upper Cutting Diameter Tolerance | -0.05mm |
ORDCODE | 1P231-1100-XB 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G1200_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 10:00:00.000 |
STDLET - Standard Letter | WE |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6527 L |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
