Sandvik Coromant 1P260-0800-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing
Next
Sandvik Coromant 1P260-0500-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing
Previous
R 932,65
inc. vat
In stock
SKU
6259823

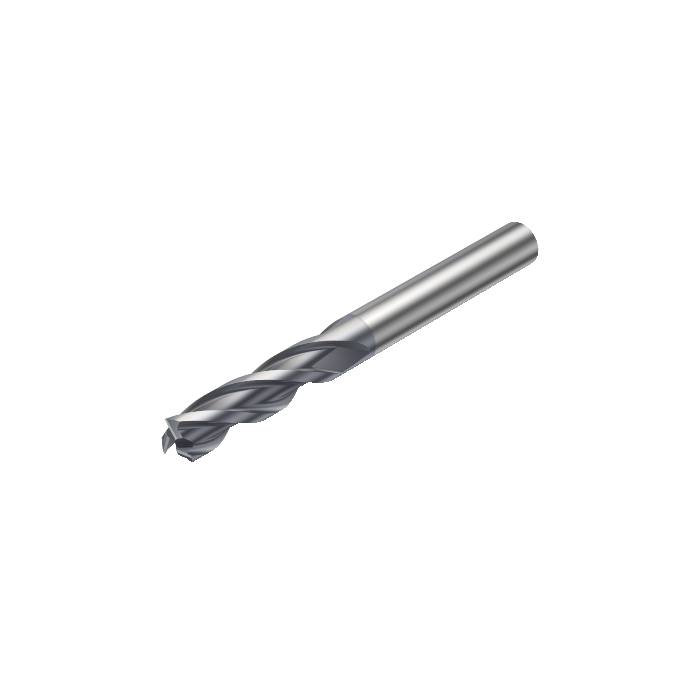

CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 65mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.031kg |
OAL - Overall Length | 65mm |
OHX - Maximum Overhang | 29mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 7deg |
RE - Corner Radius | 0mm |
LU - Usable Length | 22mm |
APMX - Depth Of Cut Maximum | 22mm |
DC - Cutting Diameter | 6mm |
DCF - Cutting Diameter Face Contact | 6mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 3.666666666667 |
DCTOLL - Lower Cutting Diameter Tolerance | -0.048mm |
DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
ORDCODE | 1P260-0600-XA 1620 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:34:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1620 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
