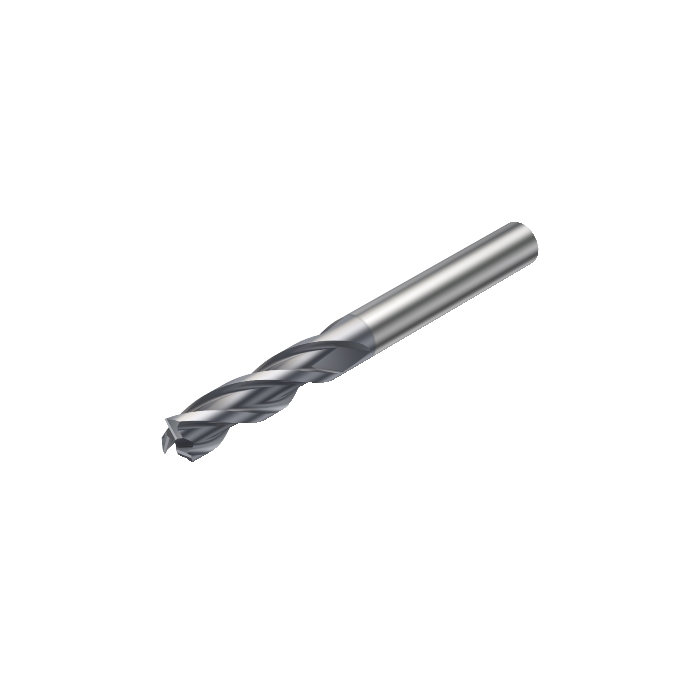

Sandvik Coromant 1P260-0800-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing

R 1 355,85 inc. vat
In stock
SKU
6259824
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
More Information
DCON - Connection Diameter 8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 80mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.059kg
OAL - Overall Length 80mm
OHX - Maximum Overhang 44mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 7deg
RE - Corner Radius 0mm
LU - Usable Length 28mm
APMX - Depth Of Cut Maximum 28mm
DC - Cutting Diameter 8mm
DCF - Cutting Diameter Face Contact 8mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 3.5
DCTOLL - Lower Cutting Diameter Tolerance -0.058mm
DCTOLU - Upper Cutting Diameter Tolerance 0mm
ORDCODE 1P260-0800-XA 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F8000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:26:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
