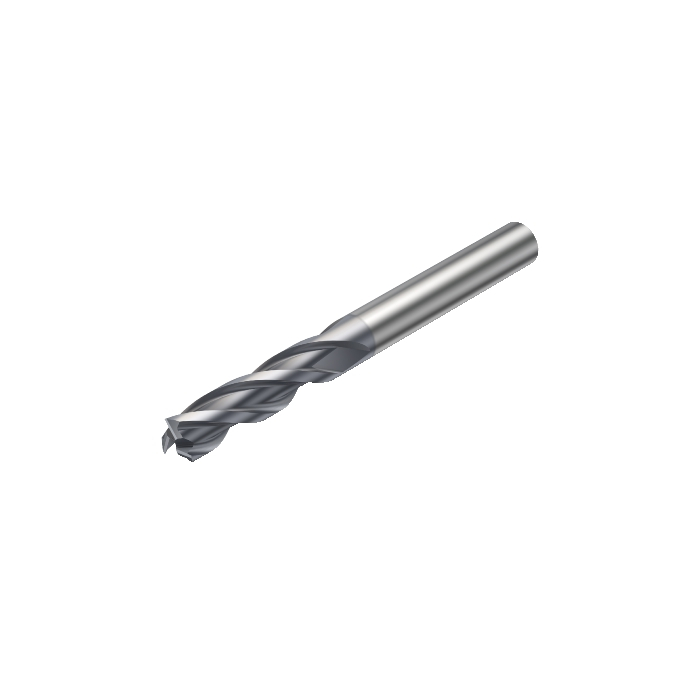

Sandvik Coromant 1P260-2540-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P260-2540-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 7045739
Price: 7018.45 ZAR
Availability: OutOfStock

Be the first to review this product

R 7 018,45 inc. vat

Out of stock

SKU

7045739

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	152.4mm
RPMX - Rotational Speed Maximum	68001/min
WT - Weight Of Item	0.9kg
OAL - Overall Length	152.4mm
OHX - Maximum Overhang	94.4mm
LSC - Clamping Length	58mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
LU - Usable Length	63.5mm
APMX - Depth Of Cut Maximum	63.5mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.254mm
DC - Cutting Diameter	25.4mm
DCF - Cutting Diameter Face Contact	24.892mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2.5
DCTOLL - Lower Cutting Diameter Tolerance	-0.084mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1P260-2540-XA 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:15:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
