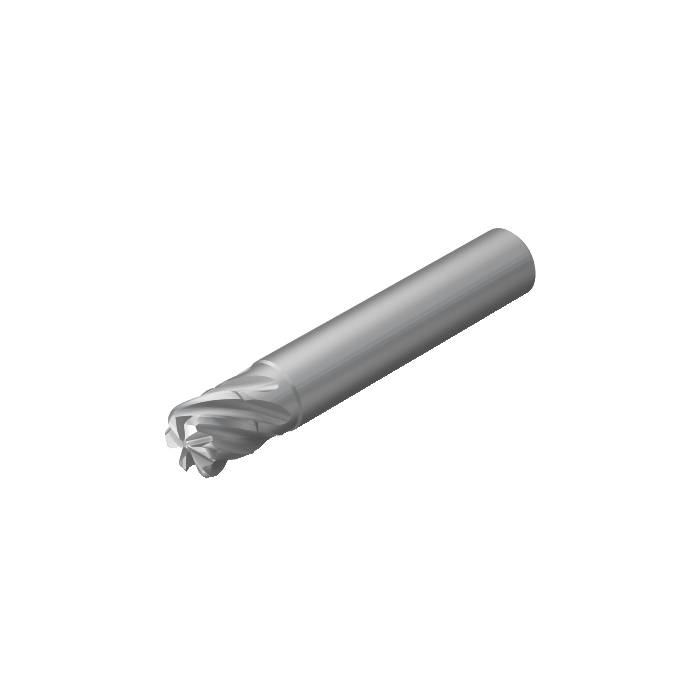

Sandvik Coromant 2F210-1200-200-SC 6060 CoroMill™ Plura solid ceramic end mill for High speed roughing

Name: Sandvik Coromant 2F210-1200-200-SC 6060 CoroMill™ Plura solid ceramic end mill for High speed roughing
SKU: 7503628
Price: 6477.95 ZAR
Availability: InStock

Be the first to review this product

R 6 477,95 inc. vat

In stock

SKU

7503628

CoroMill® Plura solid ceramic end mill for High speed roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid ceramic end mill for High speed roughing

More Information

More Information
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	65mm
BD - Body Diameter	11.4mm
LB - Body Length	18.52mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	350001/min
WT - Weight Of Item	0.034kg
OAL - Overall Length	65mm
OHX - Maximum Overhang	20mm
LSC - Clamping Length	45mm
KAPR - Tool Cutting Edge Angle	90deg
RE - Corner Radius	2mm
LU - Usable Length	18mm
APMX - Depth Of Cut Maximum	9mm
DC - Cutting Diameter	12mm
DCF - Cutting Diameter Face Contact	8mm
DN - Neck Diameter	11.4mm
FHA - Flute Helix Angle	35deg
GAMF - Radial Rake Angle	-5deg
GAMP - Axial Rake Angle	2deg
ULDR - Usable Length Diameter Ratio	1.5
ORDCODE	2F210-1200-200-SC 6060
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:18:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	6060
SUBSTRATE	CS
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
