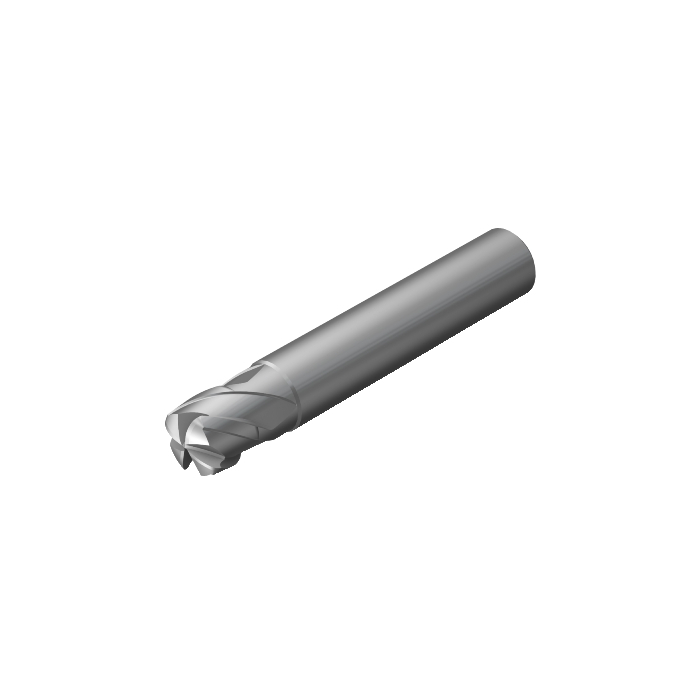

Sandvik Coromant 2H310-1200-150-SC 6060 CoroMill™ Plura solid ceramic face mill
Next
Sandvik Coromant 2F210-1200-200-SC 6060 CoroMill™ Plura solid ceramic end mill for High speed roughing
Previous
![Sandvik Coromant 2H310-1200-150-SC 6060 CoroMill™ Plura solid ceramic face mill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/69329eeab/sandvik-coromant-2h310-1200-150-sc-6060-coromilltm-plura-solid-ceramic-face-mill.jpg)
![Sandvik Coromant 2F210-1200-200-SC 6060 CoroMill™ Plura solid ceramic end mill for High speed roughing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/693239ad6/sandvik-coromant-2f210-1200-200-sc-6060-coromilltm-plura-solid-ceramic-end-mill-for-high-speed-roughing.jpg)
R 5 303,80
inc. vat
In stock
SKU
7503629
CoroMill® Plura solid ceramic face mill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid ceramic face mill
DCON - Connection Diameter | 10mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
BD - Body Diameter | 9.5mm |
LB - Body Length | 15mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 350001/min |
WT - Weight Of Item | 0.026kg |
OAL - Overall Length | 60mm |
OHX - Maximum Overhang | 20mm |
LSC - Clamping Length | 40mm |
RE - Corner Radius | 5mm |
LU - Usable Length | 15mm |
APMX - Depth Of Cut Maximum | 0.7mm |
DC - Cutting Diameter | 10mm |
DCF - Cutting Diameter Face Contact | 3.4mm |
DN - Neck Diameter | 9.5mm |
FHA - Flute Helix Angle | 38deg |
GAMF - Radial Rake Angle | -5deg |
GAMP - Axial Rake Angle | 3deg |
ULDR - Usable Length Diameter Ratio | 1.5 |
REEQ - Corner Radius Equivalent | 1.99mm |
ORDCODE | 2H310-1000-150-SC 6060 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-05-10 17:05:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 6060 |
SUBSTRATE | CS |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
