Sandvik Coromant 2P342-0600-CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling Previous Sandvik Coromant 2P342-0600-CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

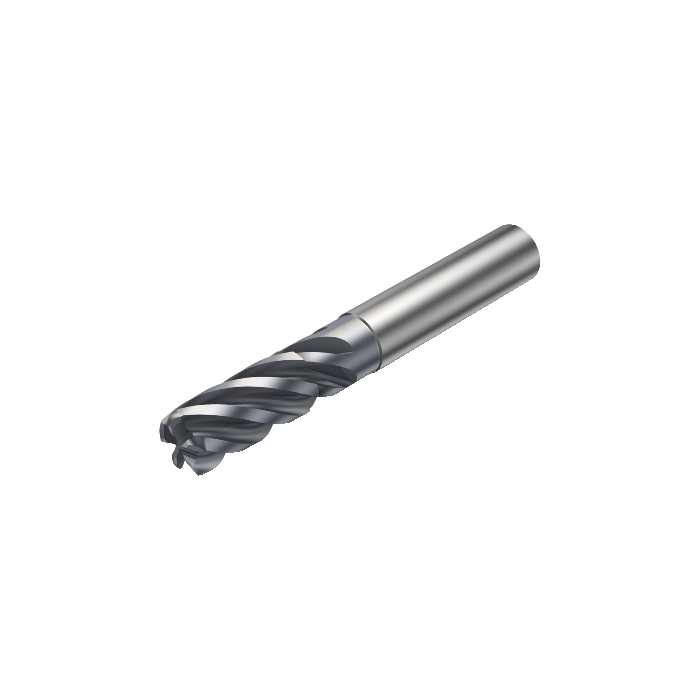

Sandvik Coromant 2F342-0635-038-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

R 1 500,75 inc. vat
In stock
SKU
6732502
CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
More Information
DCON - Connection Diameter 6.35mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63.5mm
BD - Body Diameter 6.02mm
LB - Body Length 24.1mm
BHTA - Body Half Taper Angle 30deg
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.029kg
OAL - Overall Length 63.5mm
OHX - Maximum Overhang 27.5mm
LSC - Clamping Length 36mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 7deg
RE - Corner Radius 0.381mm
LU - Usable Length 23.8mm
APMX - Depth Of Cut Maximum 15.9mm
DC - Cutting Diameter 6.35mm
DCF - Cutting Diameter Face Contact 5.588mm
DN - Neck Diameter 6.02mm
FHA - Flute Helix Angle 38deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 10.5deg
ULDR - Usable Length Diameter Ratio 3.748031496063
ORDCODE 2F342-0635-038-PC 1730
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R2500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:55:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1730
COATING PVD AlCrN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 5
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential True
