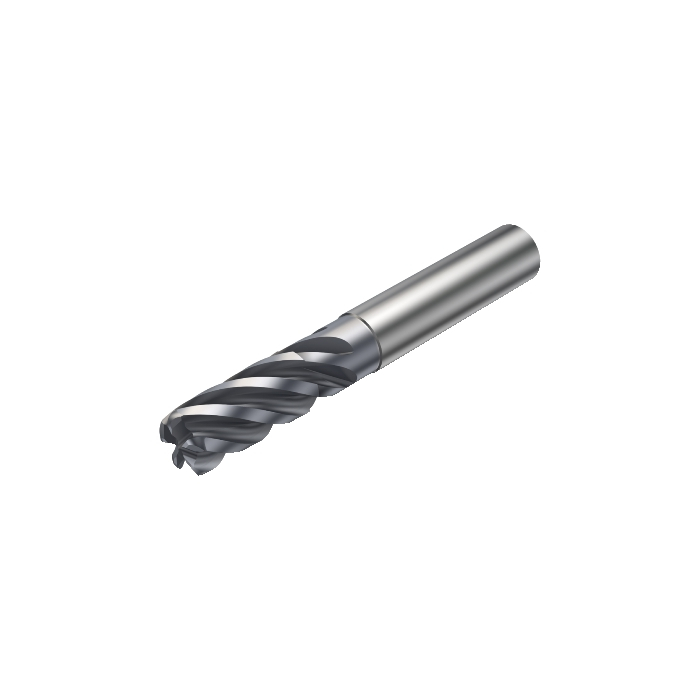

Sandvik Coromant 2F342-1270-038-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2F342-1270-038-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 6732579
Price: 3585.70 ZAR
Availability: InStock

Be the first to review this product

R 3 585,70 inc. vat

In stock

SKU

6732579

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
DCON - Connection Diameter	12.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	88.9mm
BD - Body Diameter	12.07mm
LB - Body Length	37.063mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	304001/min
WT - Weight Of Item	0.146kg
OAL - Overall Length	88.9mm
OHX - Maximum Overhang	43.6mm
LSC - Clamping Length	45.3mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	0.381mm
LU - Usable Length	36.513mm
APMX - Depth Of Cut Maximum	28.6mm
DC - Cutting Diameter	12.7mm
DCF - Cutting Diameter Face Contact	11.938mm
DN - Neck Diameter	12.07mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.875039370079
ORDCODE	2F342-1270-038-PC 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:40:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	True
