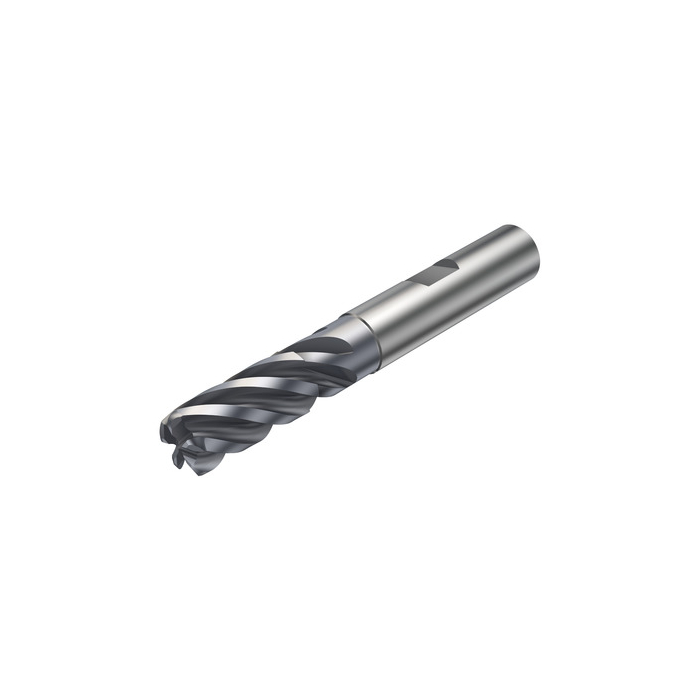

Sandvik Coromant 2N342-2500-PD 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2N342-2500-PD 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 7716329
Price: 12014.05 ZAR
Availability: InStock

Be the first to review this product

R 12 014,05 inc. vat

In stock

SKU

7716329

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	121mm
BD - Body Diameter	24mm
LB - Body Length	63.87mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	74001/min
WT - Weight Of Item	686g
OAL - Overall Length	121mm
OHX - Maximum Overhang	65mm
LSC - Clamping Length	56mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
H - Shank Height	23mm
LU - Usable Length	63mm
MHD - Mounting Hole Distance	32mm
APMX - Depth Of Cut Maximum	52mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.25mm
DC - Cutting Diameter	25mm
DCF - Cutting Diameter Face Contact	24.5mm
DN - Neck Diameter	24mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.52
ORDCODE	2N342-2500-PD 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:22:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	True
