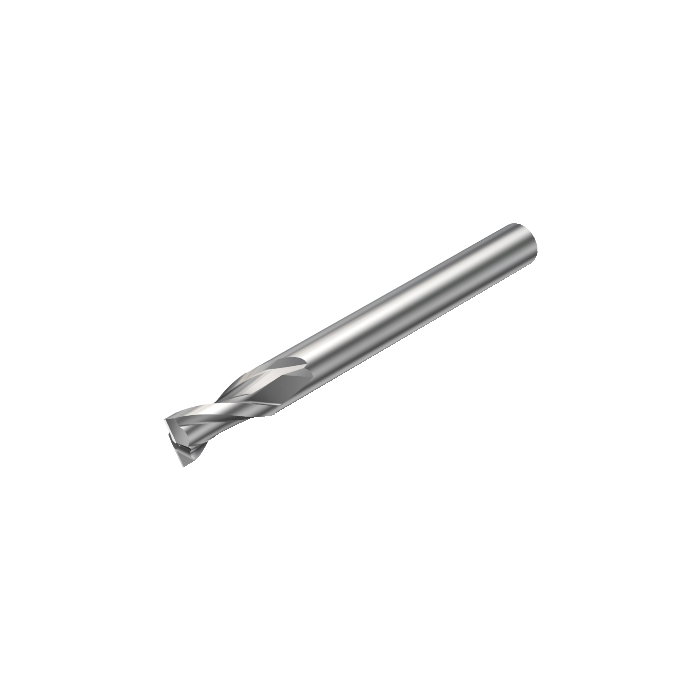

Sandvik Coromant 2P123-2000-NG H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

Name: Sandvik Coromant 2P123-2000-NG H10F CoroMill™ Plura solid carbide end mill for Large chip Removal
SKU: 6260016
Price: 10981.35 ZAR
Availability: InStock

Be the first to review this product

R 10 981,35 inc. vat

In stock

SKU

6260016

CoroMill® Plura solid carbide end mill for Large chip Removal

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Large chip Removal

More Information

More Information
DCON - Connection Diameter	19.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
RPMX - Rotational Speed Maximum	103001/min
WT - Weight Of Item	0.613kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	100mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	0.15mm
LU - Usable Length	100mm
APMX - Depth Of Cut Maximum	26mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	19.7mm
FHA - Flute Helix Angle	25deg
GAMF - Radial Rake Angle	17deg
GAMP - Axial Rake Angle	1deg
ULDR - Usable Length Diameter Ratio	5
ORDCODE	2P123-2000-NG H10F
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1970_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:50:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	H10F
SUBSTRATE	HF
CBMD - Chip Breaker Manufacturer's Designation	AL
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
