Sandvik Coromant 2P170-0300-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal Previous Sandvik Coromant 2P170-0300-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

Sandvik Coromant 2P170-0400-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

R 1 321,35 inc. vat
Out of stock
SKU
6260039

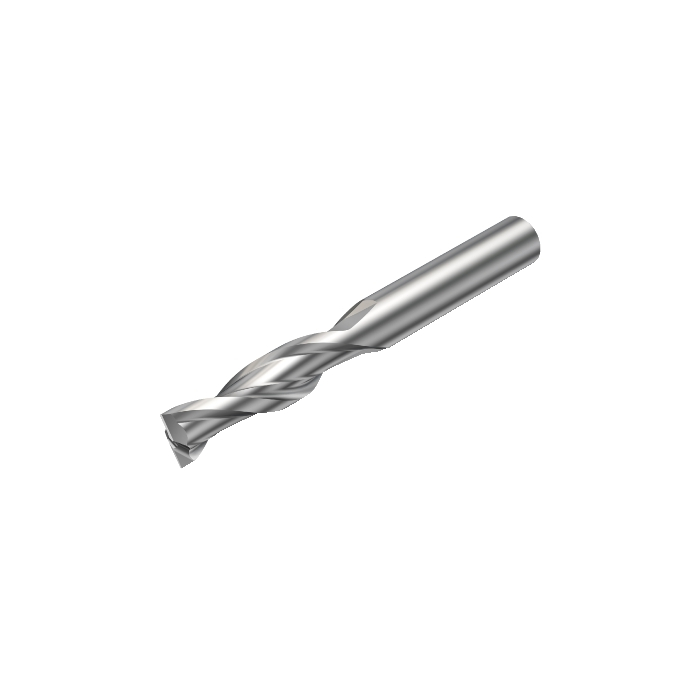

CoroMill® Plura solid carbide end mill for Large chip Removal
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Large chip Removal
More Information
DCON - Connection Diameter 4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.019kg
OAL - Overall Length 60mm
OHX - Maximum Overhang 32mm
KAPR - Tool Cutting Edge Angle 90deg
RE - Corner Radius 0.15mm
LU - Usable Length 16mm
APMX - Depth Of Cut Maximum 16mm
DC - Cutting Diameter 4mm
DCF - Cutting Diameter Face Contact 3.7mm
FHA - Flute Helix Angle 25deg
GAMF - Radial Rake Angle 17deg
GAMP - Axial Rake Angle 1deg
ULDR - Usable Length Diameter Ratio 4
ORDCODE 2P170-0400-NA H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F4000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:51:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade H10F
SUBSTRATE HF
CBMD - Chip Breaker Manufacturer's Designation AL
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
