Sandvik Coromant 2P211-0040-PC 1620 CoroMill™ Plura solid carbide end mill for micro-milling
Next
Sandvik Coromant 2P211-0080-PC 1620 CoroMill™ Plura solid carbide end mill for micro-milling
Previous
![Sandvik Coromant 2P211-0040-PC 1620 CoroMill™ Plura solid carbide end mill for micro-milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6663770f9/sandvik-coromant-2p211-0040-pc-1620-coromilltm-plura-solid-carbide-end-mill-for-micro-milling.jpg)
![Sandvik Coromant 2P211-0080-PC 1620 CoroMill™ Plura solid carbide end mill for micro-milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66635a5ec/sandvik-coromant-2p211-0080-pc-1620-coromilltm-plura-solid-carbide-end-mill-for-micro-milling.jpg)
R 1 455,90
inc. vat
In stock
SKU
6260059

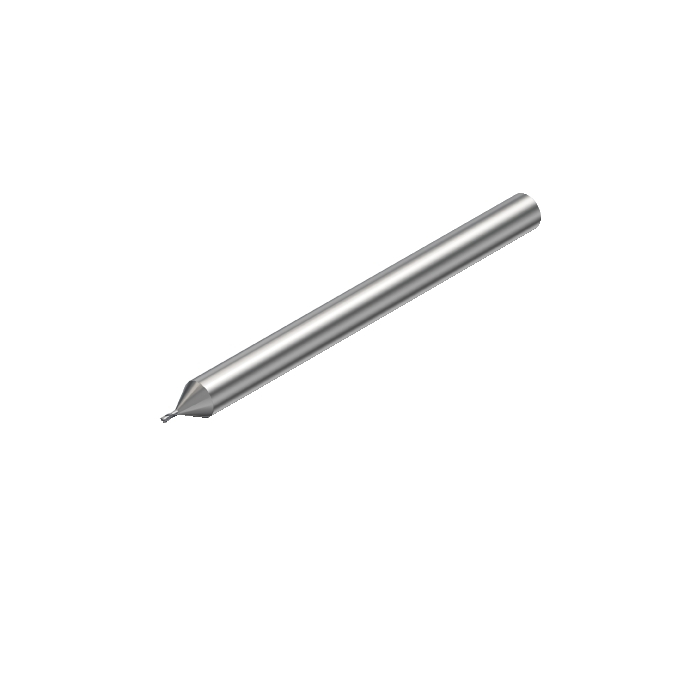

CoroMill® Plura solid carbide end mill for micro-milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for micro-milling
DCON - Connection Diameter | 3mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 38mm |
BD - Body Diameter | 0.96mm |
LB - Body Length | 8.3mm |
BHTA - Body Half Taper Angle | 10deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.015kg |
OAL - Overall Length | 38mm |
OHX - Maximum Overhang | 10mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 0mm |
LU - Usable Length | 2.5mm |
APMX - Depth Of Cut Maximum | 1mm |
DC - Cutting Diameter | 1mm |
DCF - Cutting Diameter Face Contact | 1mm |
DN - Neck Diameter | 0.96mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 1.5deg |
GAMP - Axial Rake Angle | 1.5deg |
ULDR - Usable Length Diameter Ratio | 2.5 |
ORDCODE | 2P211-0100-PC 1620 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F3000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:51:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1620 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
