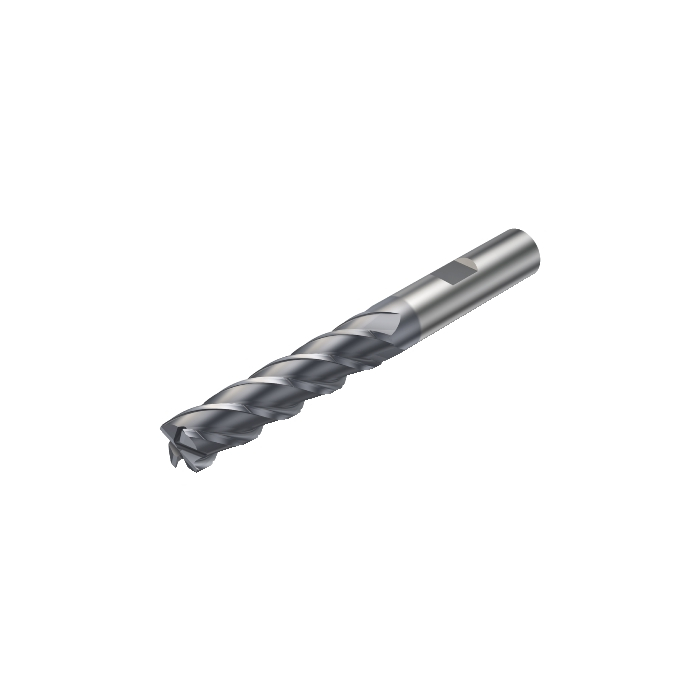

Sandvik Coromant 2P370-0635-PB 1740 CoroMill™ Plura solid carbide end mill for High Feed Side milling

Name: Sandvik Coromant 2P370-0635-PB 1740 CoroMill™ Plura solid carbide end mill for High Feed Side milling
SKU: 6870032
Price: 1718.10 ZAR
Availability: InStock

Be the first to review this product

R 1 718,10 inc. vat

In stock

SKU

6870032

CoroMill® Plura solid carbide end mill for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	68.263mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.03kg
OAL - Overall Length	68.263mm
OHX - Maximum Overhang	32.263mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
LU - Usable Length	25.4mm
APMX - Depth Of Cut Maximum	25.4mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.102mm
DC - Cutting Diameter	6.35mm
DCF - Cutting Diameter Face Contact	6.146mm
FHA - Flute Helix Angle	37deg
GAMF - Radial Rake Angle	10deg
GAMP - Axial Rake Angle	7.5deg
ULDR - Usable Length Diameter Ratio	4
DCTOLL - Lower Cutting Diameter Tolerance	-0.058mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	2P370-0635-PB 1740
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:13:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1740
COATING	PVD AlTiN
SUBSTRATE	HC
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
