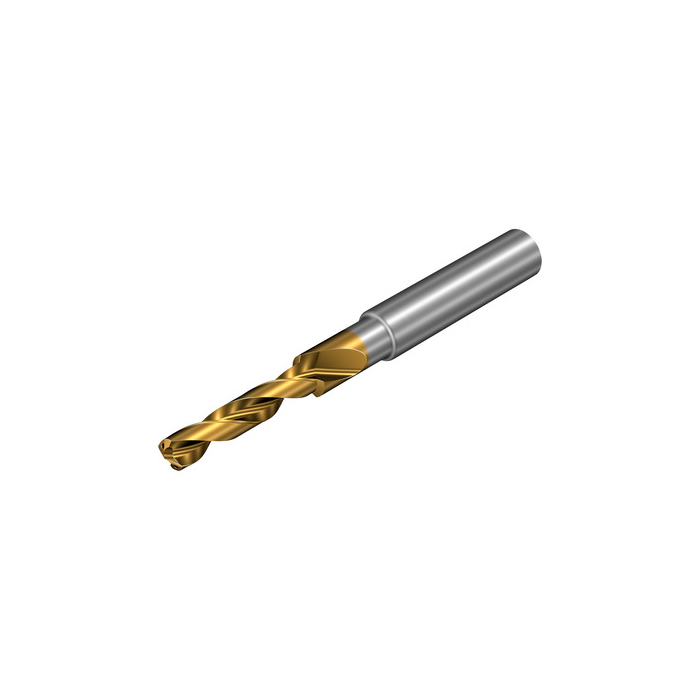

Sandvik Coromant 860.2-0870-026A1-PM P1BM CoroDrill® 860-PM solid carbide step and chamfer drill

R 4 488,45 inc. vat
In stock
SKU
8151515
CoroDrill® 860-PM solid carbide step and chamfer drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860-PM solid carbide step and chamfer drill
More Information
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100.6mm
RPMX - Rotational Speed Maximum 500001/min
WT - Weight Of Item 0.131kg
OAL - Overall Length 102mm
OHX - Maximum Overhang 55.58mm
GAMO - Orthogonal Rake Angle 18.67deg
LU - Usable Length 28.9mm
DC - Cutting Diameter 11.7mm
FHA - Flute Helix Angle 27.5deg
PL - Point Length 1.4mm
SIG - Point Angle 147deg
SDL - Step Diameter Length 26mm
STA - Step Included Angle 90deg
ORDCODE 860.2-0870-026A1-PM P1BM
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2022-10-04 13:14:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade P1BM
COATING PVD TiAlSiN+TiSiN
SUBSTRATE HC
TCHA - Achievable Hole Tolerance H8
ZEFP - Peripheral Effective Cutting Edge Count 2
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
