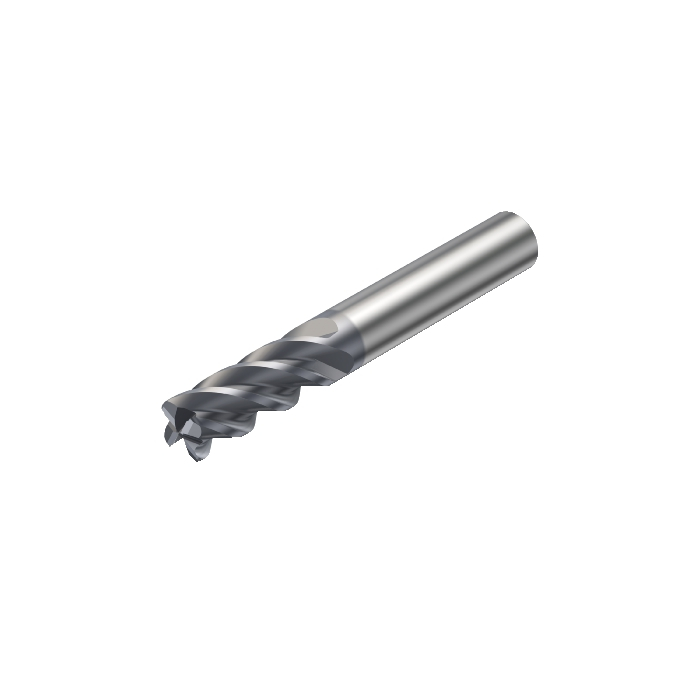

Sandvik Coromant 2S340-1600-200-MA 1640 CoroMill™ Plura solid carbide end mill for High Feed Side milling

Name: Sandvik Coromant 2S340-1600-200-MA 1640 CoroMill™ Plura solid carbide end mill for High Feed Side milling
SKU: 6260174
Price: 6390.55 ZAR
Availability: InStock

Be the first to review this product

R 6 390,55 inc. vat

In stock

SKU

6260174

CoroMill® Plura solid carbide end mill for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	92mm
RPMX - Rotational Speed Maximum	228001/min
WT - Weight Of Item	0.256kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	44mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	2mm
LU - Usable Length	32mm
APMX - Depth Of Cut Maximum	32mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	12mm
FHA - Flute Helix Angle	41deg
GAMF - Radial Rake Angle	15deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2
ORDCODE	2S340-1600-200-MA 1640
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:54:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1640
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
