Sandvik Coromant RA215.24-0850AAK06L 1620 CoroMill™ Plura solid carbide end mill for Finishing
Next
Sandvik Coromant RA215.24-0650AAK18L 1620 CoroMill™ Plura solid carbide end mill for Finishing
Previous
R 1 491,55
inc. vat
In stock
SKU
5739959
CoroMill® Plura solid carbide end mill for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days

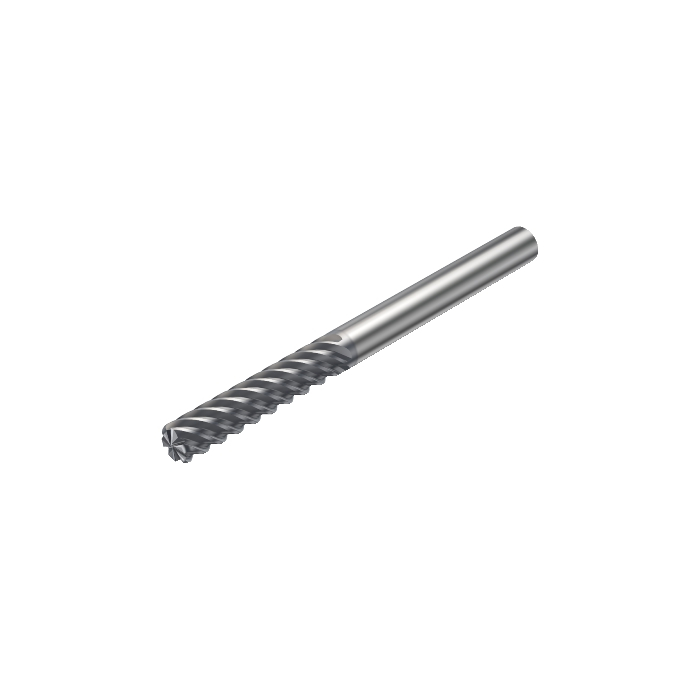

CoroMill® Plura solid carbide end mill for Finishing
DCON - Connection Diameter | 6.35mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 76.2mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.044kg |
OAL - Overall Length | 76.2mm |
OHX - Maximum Overhang | 40.2mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 0.794mm |
LU - Usable Length | 7.144mm |
APMX - Depth Of Cut Maximum | 7.144mm |
DC - Cutting Diameter | 2.38mm |
DCF - Cutting Diameter Face Contact | 0.792mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 3.001680672269 |
ORDCODE | RA215.24-0650BAK18L 1620 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:01:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1620 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
