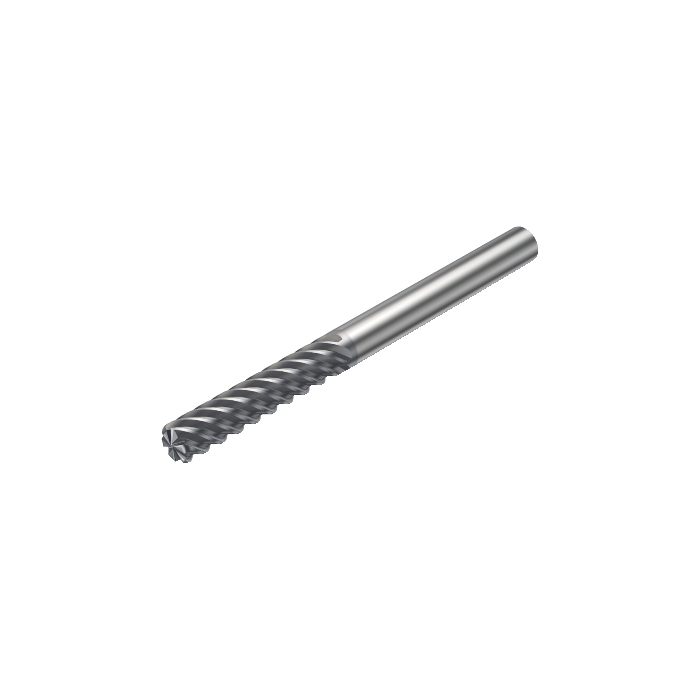

Sandvik Coromant RA215.24-0650AAK18L 1620 CoroMill™ Plura solid carbide end mill for Finishing

R 1 491,55 inc. vat
In stock
SKU
5739955
CoroMill® Plura solid carbide end mill for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Finishing
More Information
DCON - Connection Diameter 6.35mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 76.2mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.044kg
OAL - Overall Length 76.2mm
OHX - Maximum Overhang 40.2mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0.397mm
LU - Usable Length 7.144mm
APMX - Depth Of Cut Maximum 7.144mm
DC - Cutting Diameter 2.38mm
DCF - Cutting Diameter Face Contact 1.586mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 3.001680672269
ORDCODE RA215.24-0650AAK18L 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R2500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 08:54:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
