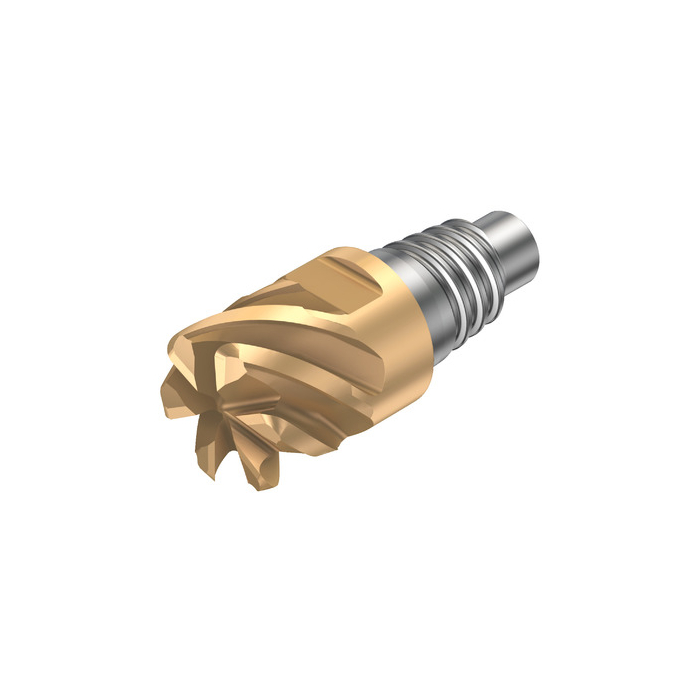

Sandvik Coromant 316-10FM650-10000L 1030 CoroMill™ 316 solid carbide head for Finishing
R 1 321,35
inc. vat
In stock
SKU
5758376
CoroMill® 316 solid carbide head for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Finishing
| DCON - Connection Diameter | 9.7mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 12.4mm |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 25g |
| OAL - Overall Length | 23.6mm |
| OHX - Maximum Overhang | 12.4mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| APMX - Depth Of Cut Maximum | 5.5mm |
| KCH - Corner Chamfer | 45deg |
| CHW - Corner Chamfer Width | 0.1mm |
| DC - Cutting Diameter | 10mm |
| DCF - Cutting Diameter Face Contact | 9.8mm |
| DN - Neck Diameter | 9.7mm |
| FHA - Flute Helix Angle | 50deg |
| GAMF - Radial Rake Angle | 10.5deg |
| GAMP - Axial Rake Angle | 13.5deg |
| ORDCODE | 316-10FM650-10000L 1030 |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0100_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-04-22 09:42:00.000 |
| Hand | R |
| Grade | 1030 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | False |
| CPDF - Cutting Pitch Differential | False |
