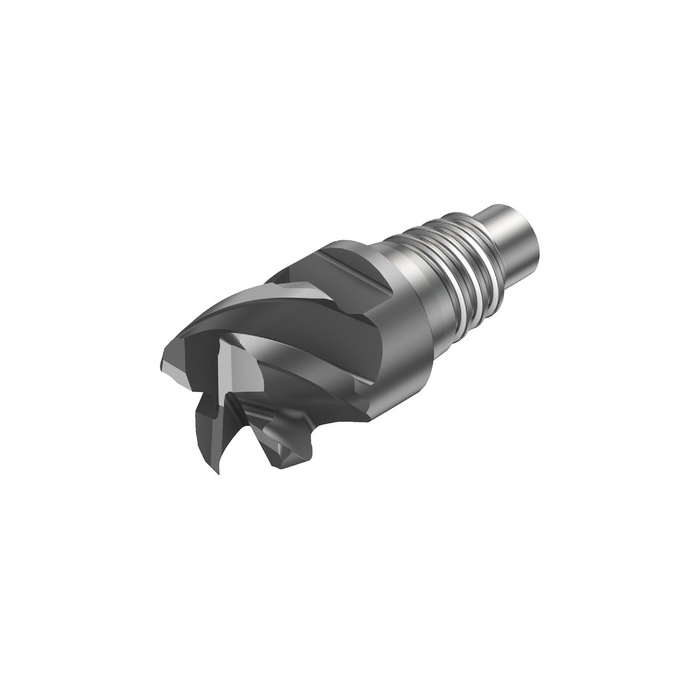

Sandvik Coromant 316-10SM450-10030P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
Next
Sandvik Coromant 316-10SM450-10015P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
Previous
![Sandvik Coromant 316-10SM450-10030P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6978933cb/sandvik-coromant-316-10sm450-10030p-1730-coromilltm-316-solid-carbide-head-for-stable-multi-operations-milling.jpg)
![Sandvik Coromant 316-10SM450-10015P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/697873224/sandvik-coromant-316-10sm450-10015p-1730-coromilltm-316-solid-carbide-head-for-stable-multi-operations-milling.jpg)
Sandvik Coromant 316-10SM450-10020P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
R 1 202,90
inc. vat
In stock
SKU
7611702
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
DCON - Connection Diameter | 9.7mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 12.4mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.025kg |
OAL - Overall Length | 23.6mm |
OHX - Maximum Overhang | 12.4mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 2mm |
APMX - Depth Of Cut Maximum | 5.5mm |
DC - Cutting Diameter | 10mm |
DCF - Cutting Diameter Face Contact | 6mm |
DN - Neck Diameter | 9.7mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ORDCODE | 316-10SM450-10020P 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0100_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 10:28:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | True |
