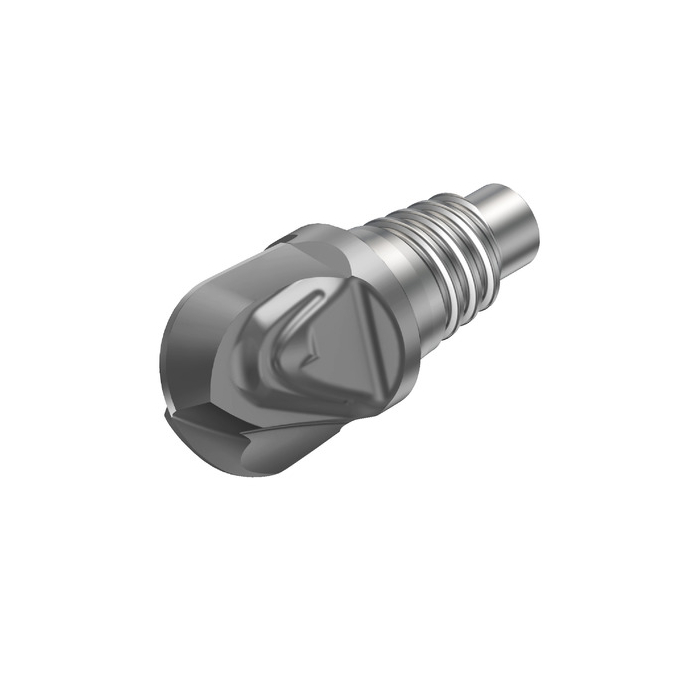

Sandvik Coromant 316-12BM210-12060G 1730 CoroMill™ 316 solid carbide head for Profiling
R 1 209,80
inc. vat
In stock
SKU
7611712
CoroMill® 316 solid carbide head for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Profiling
| DCON - Connection Diameter | 11.7mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 14mm |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.031kg |
| OAL - Overall Length | 27.8mm |
| OHX - Maximum Overhang | 14mm |
| RMPX - Maximum Ramping Angle | 15deg |
| RE - Corner Radius | 6mm |
| LU - Usable Length | 14mm |
| APMX - Depth Of Cut Maximum | 10mm |
| DC - Cutting Diameter | 12mm |
| DN - Neck Diameter | 11.7mm |
| FHA - Flute Helix Angle | 10deg |
| GAMF - Radial Rake Angle | 10.5deg |
| GAMP - Axial Rake Angle | 1deg |
| PSIR - Tool Lead Angle | 0deg |
| ULDR - Usable Length Diameter Ratio | 1.166666666667 |
| ORDCODE | 316-12BM210-12060G 1730 |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0120_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-07-08 14:05:00.000 |
| Hand | R |
| Grade | 1730 |
| COATING | PVD AlTiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
