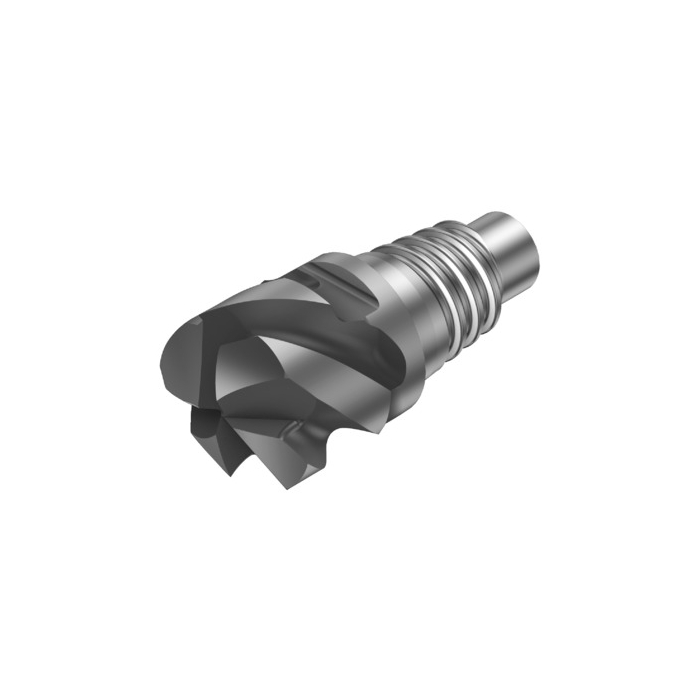

Sandvik Coromant 316-12HM350-12015P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling

Name: Sandvik Coromant 316-12HM350-12015P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling
SKU: 7611724
Price: 1504.20 ZAR
Availability: InStock

Be the first to review this product

R 1 504,20 inc. vat

In stock

SKU

7611724

CoroMill® 316 solid carbide head for High Feed Face milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for High Feed Face milling

More Information

More Information
DCON - Connection Diameter	11.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	14.5mm
LB - Body Length	14.5mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.038kg
OAL - Overall Length	28.3mm
OHX - Maximum Overhang	14.5mm
KAPR - Tool Cutting Edge Angle	31.57deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	6mm
LU - Usable Length	14.5mm
APMX - Depth Of Cut Maximum	0.8mm
DC - Cutting Diameter	12mm
DCF - Cutting Diameter Face Contact	4.5mm
DN - Neck Diameter	11.7mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	-18deg
GAMP - Axial Rake Angle	6deg
ULDR - Usable Length Diameter Ratio	1.208333333333
REEQ - Corner Radius Equivalent	2.1mm
ORDCODE	316-12HM350-12015P 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0120_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-09-13 12:52:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
