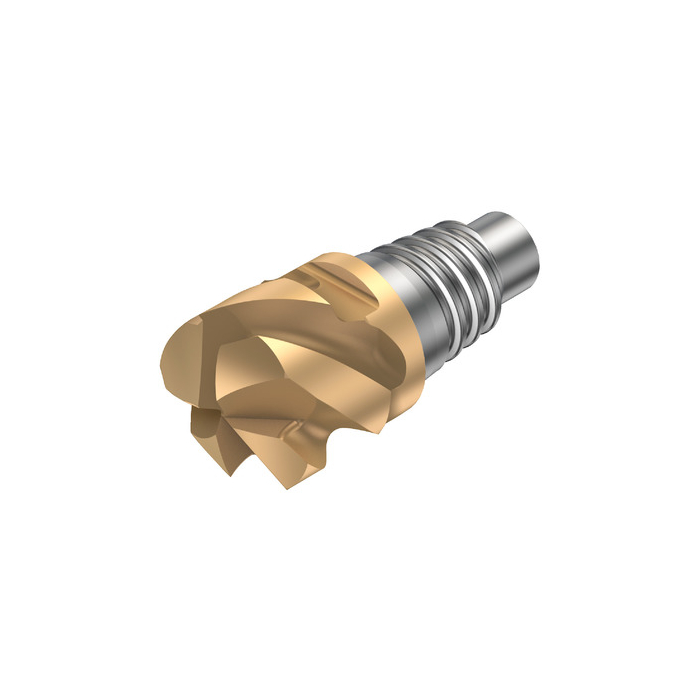

Sandvik Coromant 316-16HM350-16020P 1030 CoroMill™ 316 solid carbide head for High Feed Face milling

R 2 329,90 inc. vat
In stock
SKU
5782703
CoroMill® 316 solid carbide head for High Feed Face milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for High Feed Face milling
More Information
DCON - Connection Diameter 15.5mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 18.7mm
LB - Body Length 18.7mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.065kg
OAL - Overall Length 35.7mm
OHX - Maximum Overhang 18.7mm
KAPR - Tool Cutting Edge Angle 30.29deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 8mm
LU - Usable Length 18.7mm
APMX - Depth Of Cut Maximum 1mm
DC - Cutting Diameter 16mm
DCF - Cutting Diameter Face Contact 6.2mm
DN - Neck Diameter 15.5mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle -18deg
GAMP - Axial Rake Angle 6deg
ULDR - Usable Length Diameter Ratio 1.16875
REEQ - Corner Radius Equivalent 2.75mm
ORDCODE 316-16HM350-16020P 1030
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0160_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-13 12:52:00.000
Hand R
Grade 1030
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
